22% off

MSI MAG Coreliquid 360R

9,690.00 (In. GST)

The newly introduced MAG CORELIQUID has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

4 in stock

Compare
SKU: NG00656 Categories: , Tag:

Description

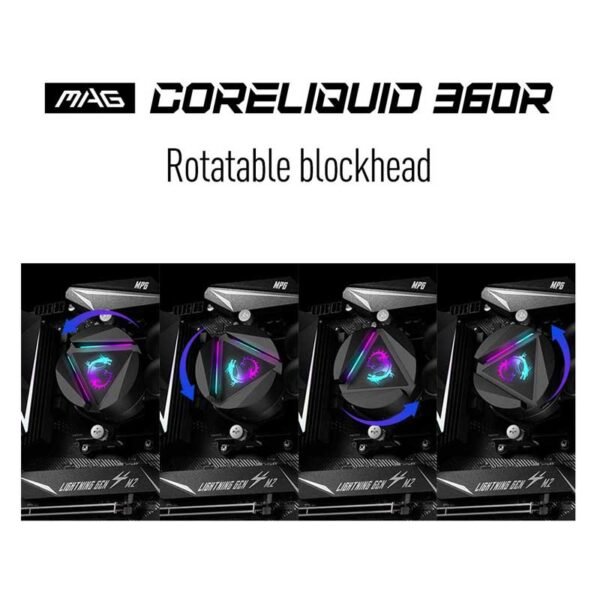

ROTATABLE BLOCKHEAD

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.



RADIATOR PUMP DESIGN

The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.



PUMP MOTOR RESONANCE ELIMINATION

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.



HIGH THERMAL DISSIPATION

A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.



EVAPORATION PROOF TUBING

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.



DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.



MORE SILENCE THAN EXPECTED

MAG CORELIQUID 360R’s noise level is significantly lower than that of competitor’s by 10%.



SPECIFICATION

NUMBER OF FANS 3
FAN DIMENSIONS 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
FAN SPEED 500 ~ 2000 RPM
FAN POWER CONSUMPTION 1.8 W
FAN RATED CURRENT 0.15 A
FAN RATED VOLTAGE 12V DC
FAN BEARING Two Ball Bearing
FAN AIR PRESSURE 0.23 ~ 2.39 mmH2O
FAN NOISE LEVEL 14.3 ~ 34.3 dBA
FAN AIR FLOW 21.63 ~ 78.73 CFM
FAN LIGHTING ARGB
FAN ARGB CABLE CONNECTOR Pin + Socket
PWM MODE Yes
FAN CABLE LENGTH (5V ARGB / PWM CABLE) 550 / 350mm; 21.65 / 13.78 inches
RADIATOR MATERIAL Aluminum
RADIATOR DIMENSIONS 394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches
RADIATOR WATER COOLING PIPE LENGTH 400mm / 15.75 inches
BLOCK DIMENSIONS 80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches
BLOCK LIGHTING ARGB
BLOCK ARGB 5V CABLE LENGTH 400mm / 15.75 inches
BLOCK ARGB CABLE CONNECTOR Pin + Socket
PUMP LOAD CURRENT 0.34 A
PUMP RATED VOLTAGE 12V DC
PUMP SPEED 4200 RPM
PUMP POWER CONSUMPTION 4.08W
INTEL SOCKET LGA 1150/1151/1155/1156/1200
LGA 1366/2011/2011-3/2066
AMD SOCKET AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
SocketTR4/sTRX4/SP3
AMD SOCKETTR4 / STRX4 / SP3 SOCKET Y
ACCESSORIES 1 to 3 Fan PWM cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
Noise reducer cable x 1
