Cooler Master MASTERBOX NR600 WITH ODD Desktop PC Case
STREAMLINED, BY DEFINITION
Simplicity in aesthetics rarely reflect complexity in design. Cooler Master’s signature Fine Mesh spans the entire front panel for open airflow, makes up the structure of the case, and adds rigidity to its overall construction. Meticulously engineered for unhindered airflow, the MasterBox NR600 applies bold performance to a pure-and-simple design.

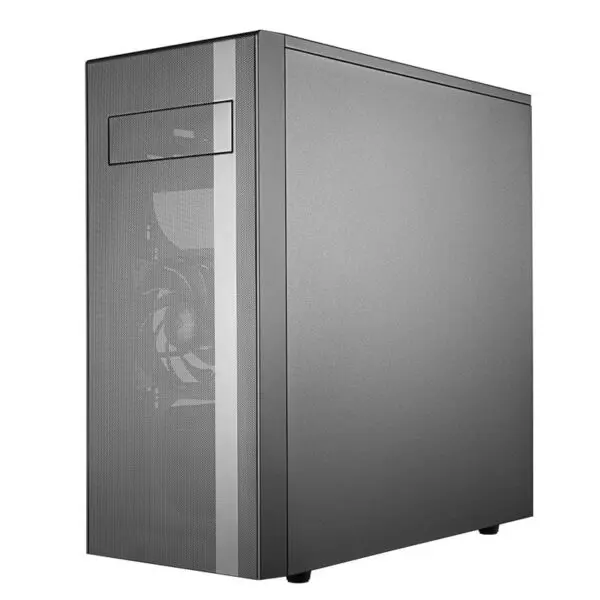

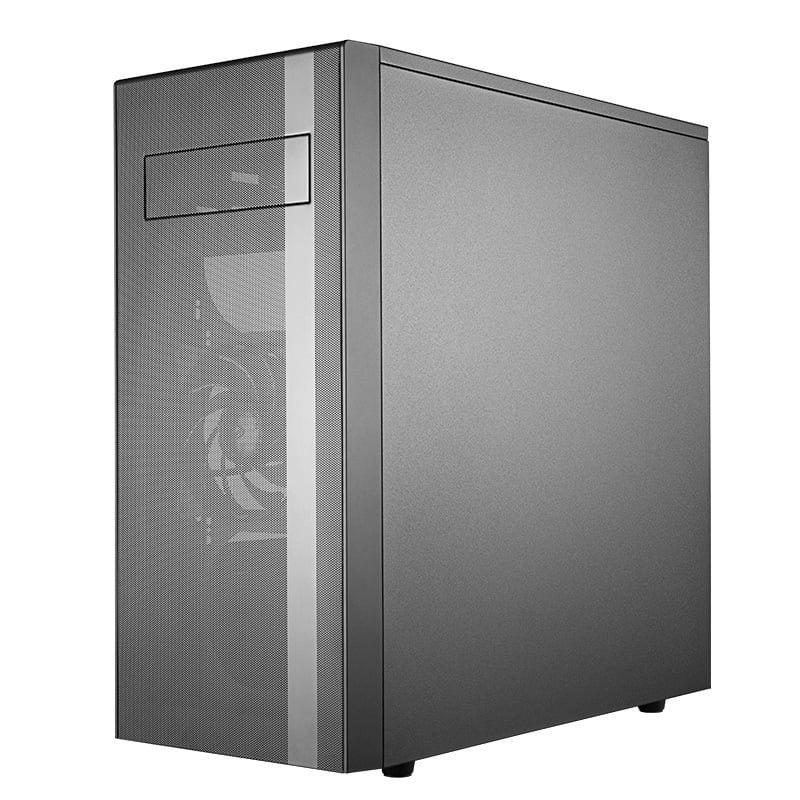

The MasterBox NR600 is a pure and simple design that is focused on airflow performance. A single-layer, fine mesh makes up the entire front panel, achieving efficient airflow while also acting as a dust filter.
SEAMLESS TEMPERED GLASS

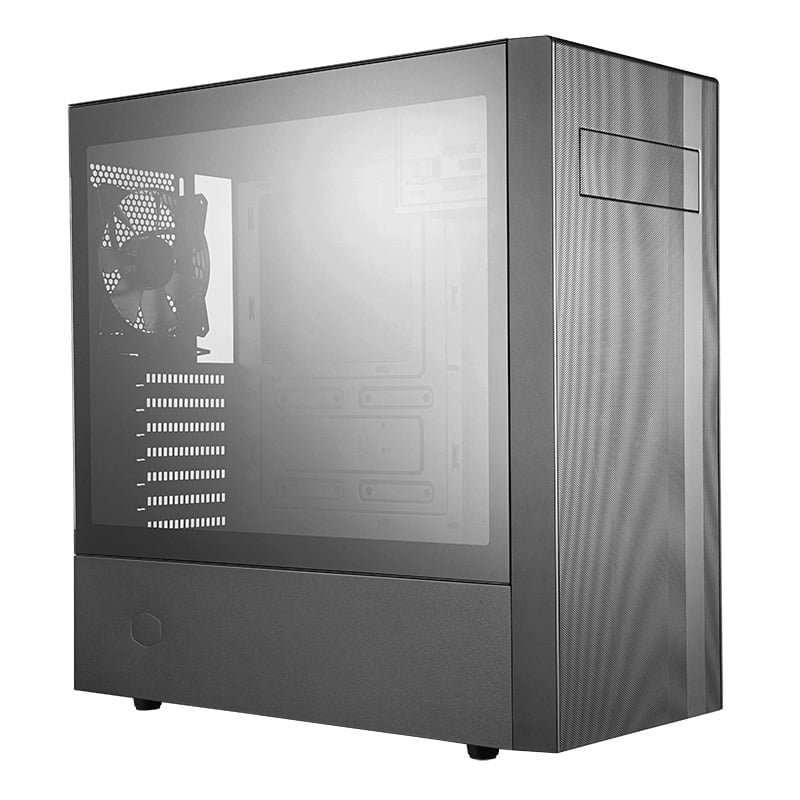

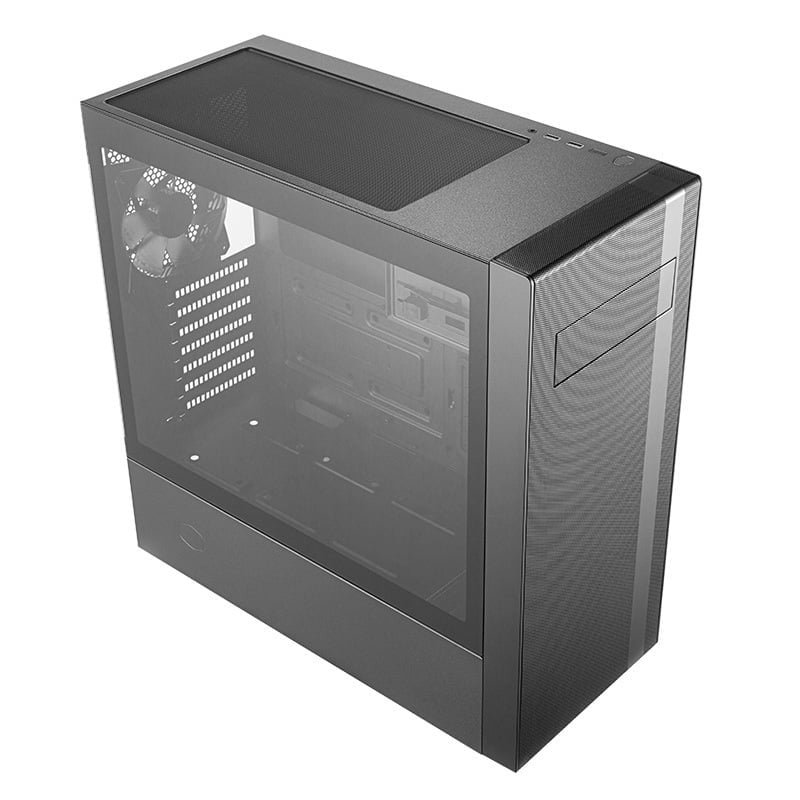

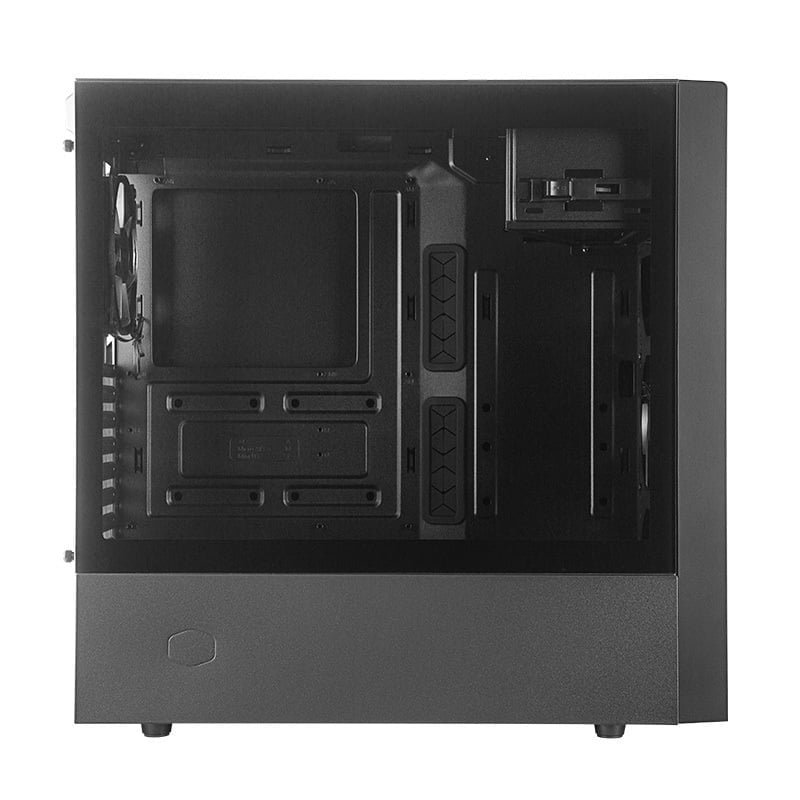

The tempered glass side panel sits completely flush against the chassis, mounted securely and discreetly by a system of tabs and thumbscrews.
AMPLE STORAGE SUPPORT

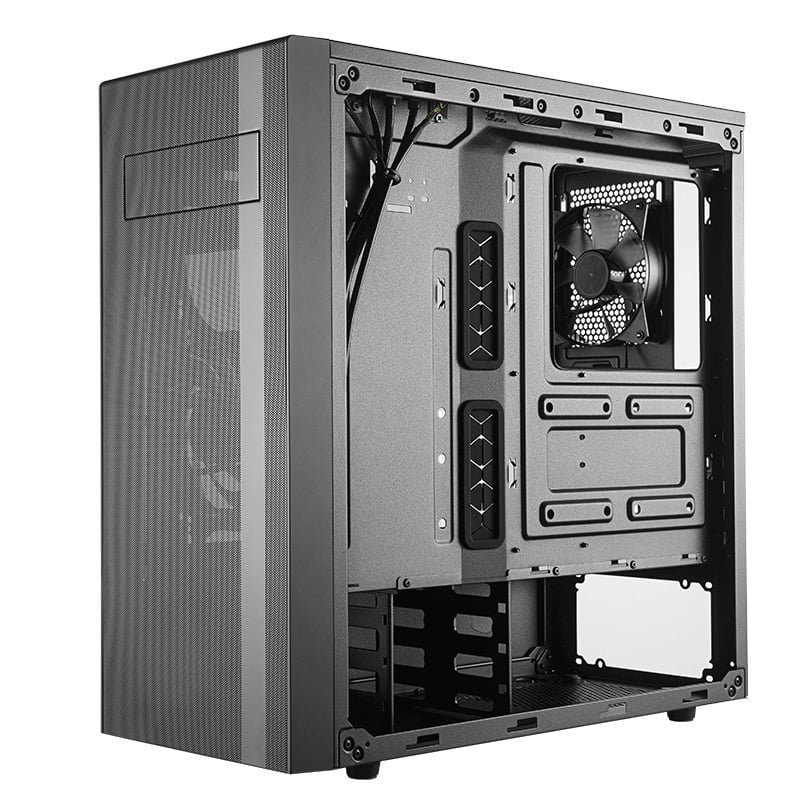

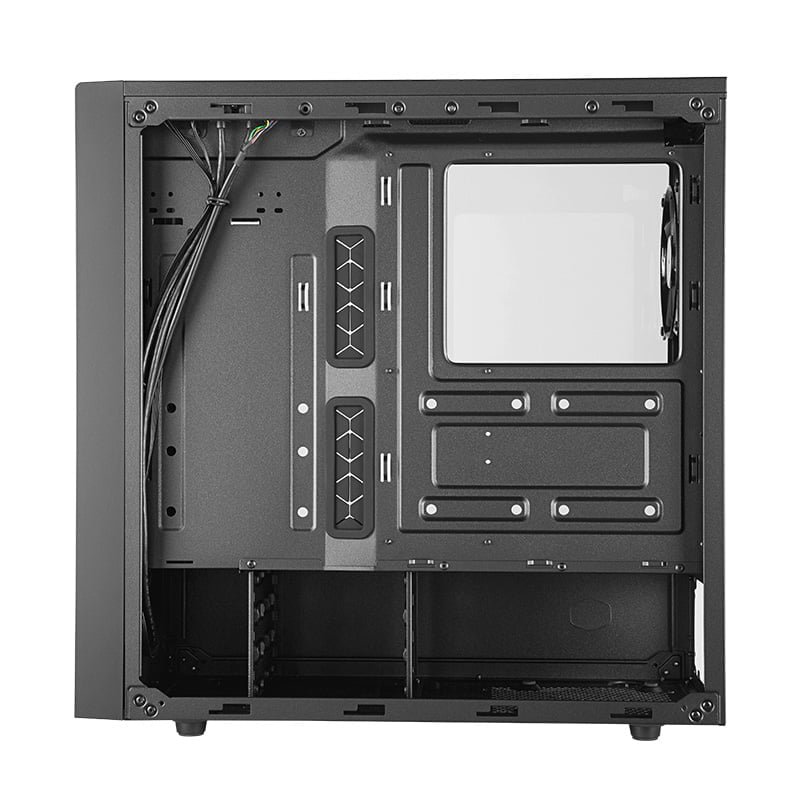

A total of 5 x 2.5″ and 4 x 3.5″ drives can be mounted using a tool-less system. Storage can be mounted on the PSU shroud, behind the motherboard tray, and in the HDD cage.
The single 4 pole headset jack features both Audio and Microphone capabilities simultaneously so that separate jacks are not needed.
Front: 140mm x2 / 120mm x3
Top: 140mm x2 / 120mm x2
Rear: 120mm x1
*non ODD version
Top: 120/240mm (35mm max motherboard component height)
*non ODD version
|MATERIALS – BODY||Steel, Plastic|
|MATERIALS – SIDE PANEL||Tempered Glass|
|DIMENSIONS (L X W X H)||478 (L) x 209 (W) x 473 (H) mm|
|MOTHERBOARD SUPPORT||ATX, Micro ATX, Mini ITX|
|5.25″ DRIVE BAYS||1|
|3.5″ DRIVE BAYS||4|
|2.5″ DRIVE BAYS||5|
|I/O PANEL||2x USB 3.0, 1x 3.5mm Headset Jack (Audio+Mic)|
|PRE-INSTALLED FANS – FRONT||1x 120mm|
|PRE-INSTALLED FANS – REAR||1x 120mm|
|FAN SUPPORT – TOP||2x 140mm, 2x 120mm|
|FAN SUPPORT – REAR||1x 120mm|
|RADIATOR SUPPORT – FRONT||280mm, 240mm, 140mm, 120mm|
|RADIATOR SUPPORT – TOP||120mm/240mm (with ODD removed) (35mm max motherboard component height)|
|RADIATOR SUPPORT – REAR||120mm|
|CLEARANCE – CPU COOLER||166mm/6.54″|
|CLEARANCE – PSU||180mm|
|CLEARANCE – GFX||410mm/16.1″|
|CABLE ROUTING – BEHIND MOTHERBOARD TRAY||20-28mm / 0.78-1.10″|
|DUST FILTERS||Top, Bottom|
|POWER SUPPLY SUPPORT||Bottom mount, ATX|
