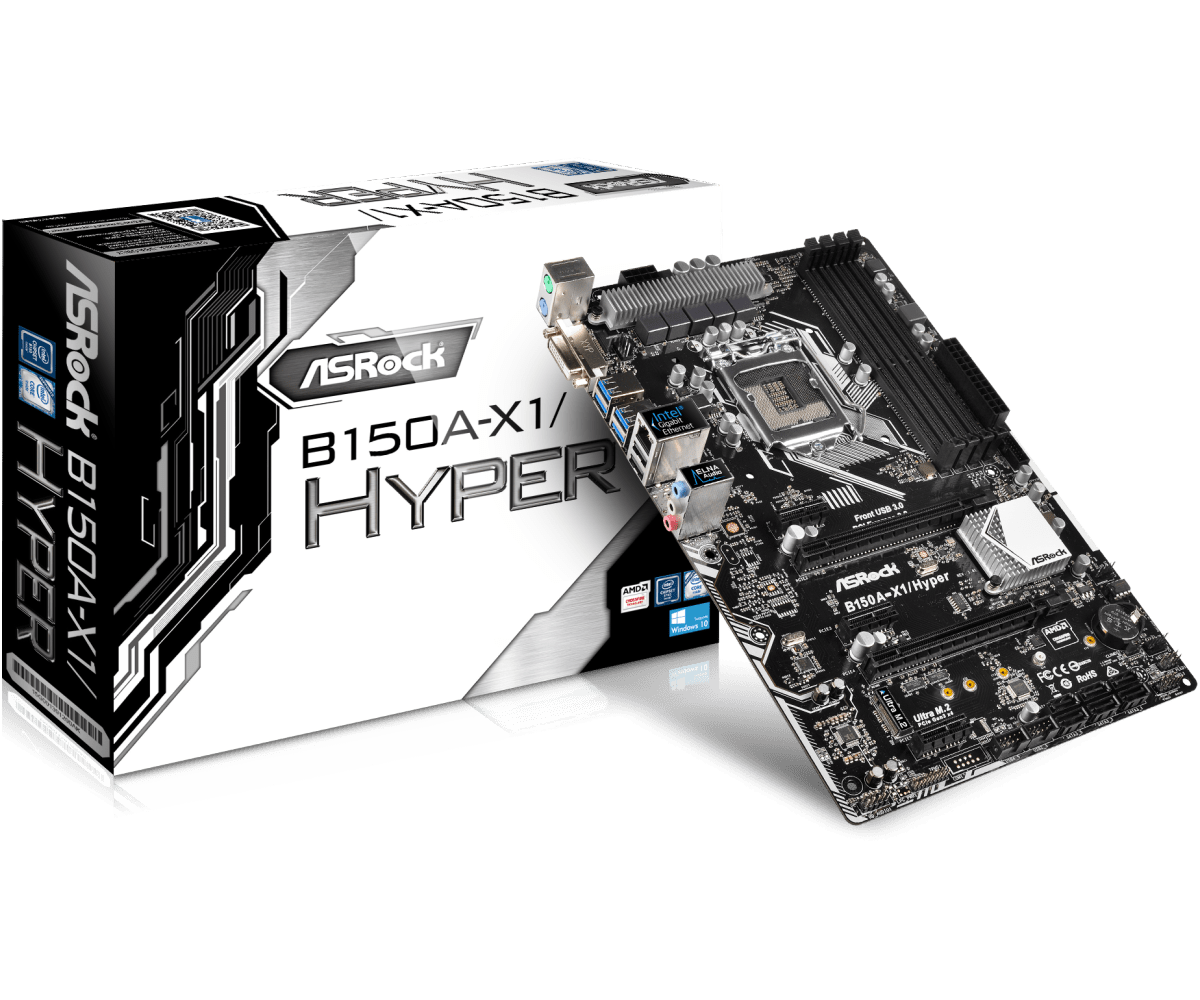

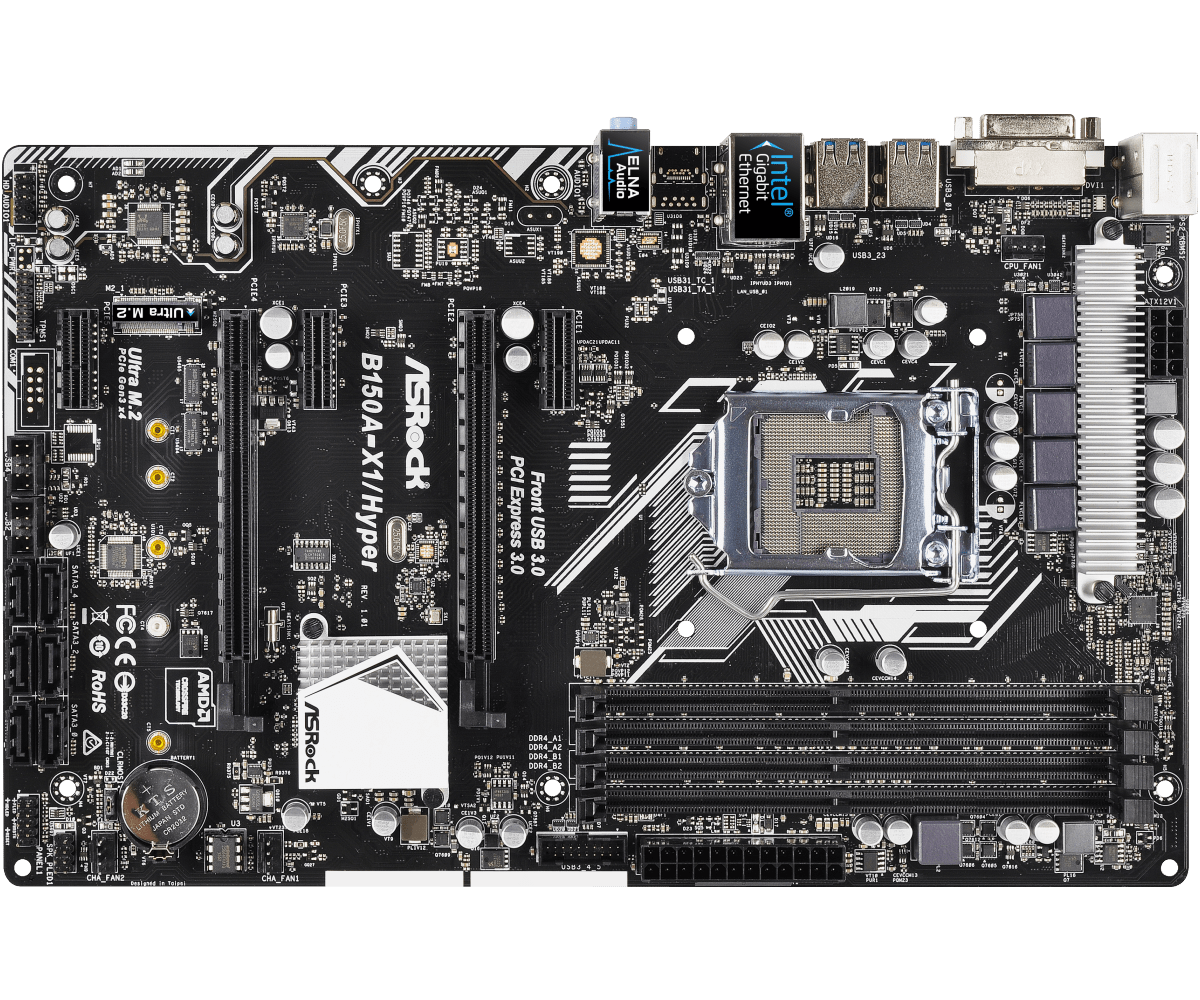

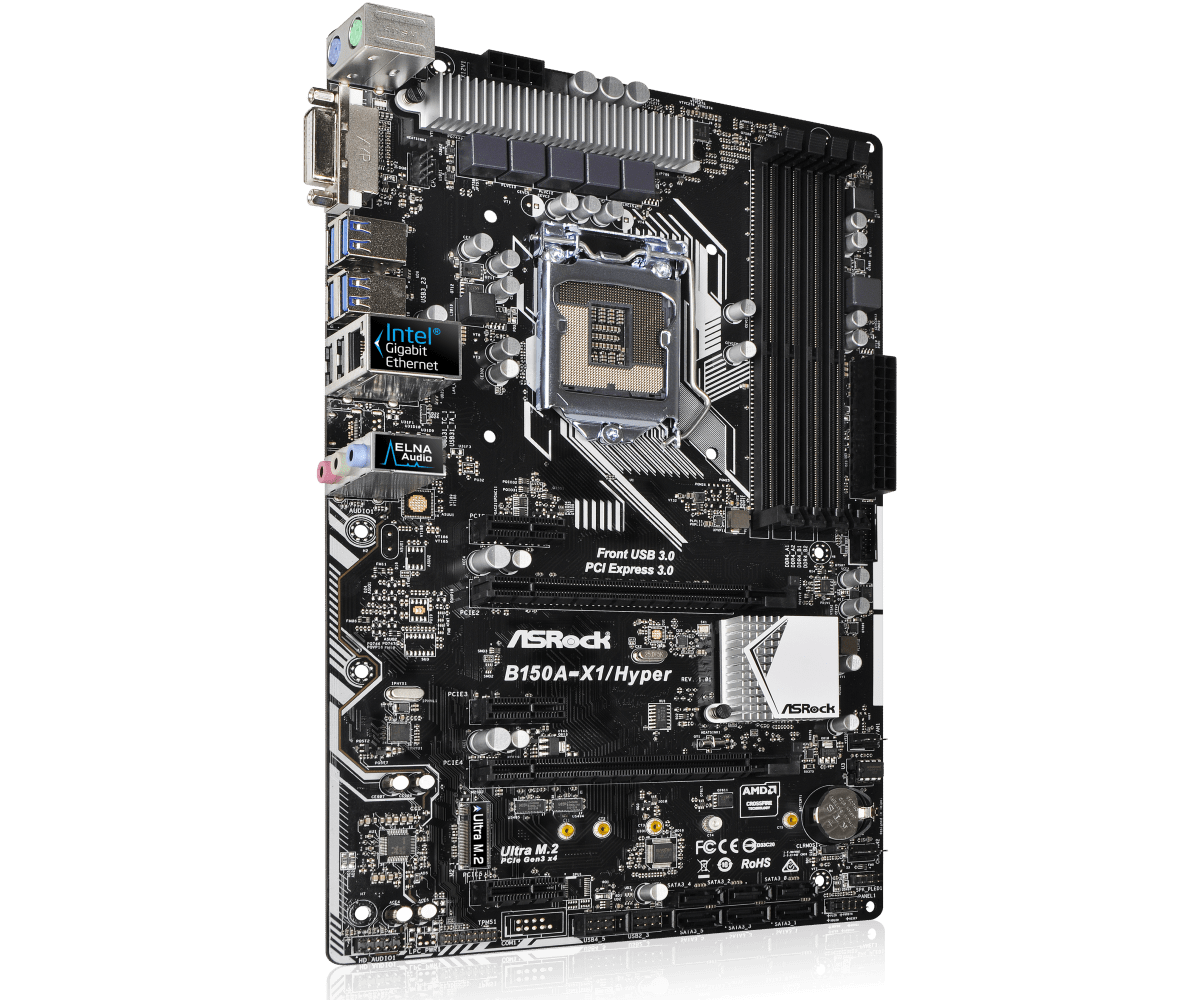

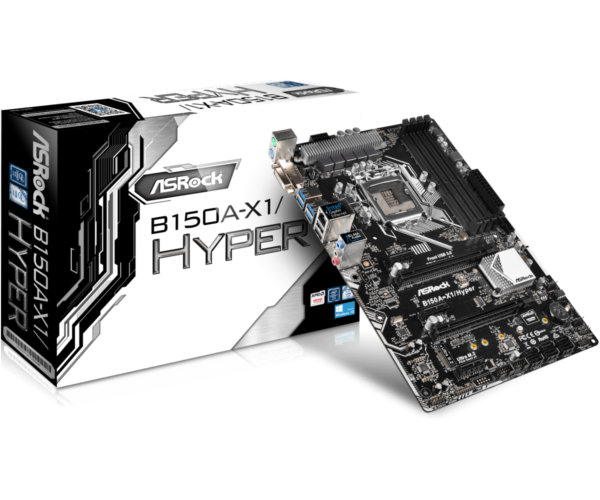

AsRock B150A-X1 Hyper

₹6,500.00 (In. GST)

  • ASRock Super Alloy
  • Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
    *8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
  • Digi Power, 5 Power Phase design
  • Supports Dual Channel DDR4 2133
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
  • Graphics Output Options: DVI-D
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 1 Ultra M.2
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop
Ask for more info!

Out of stock

Add to wishlist
Compare
SKU: NG00897 Categories: ,

Description

  • Unique Feature
    ASRock Super Alloy
    – Premium 50A Power Choke
    – Matte Black PCB
    – High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection
    ASRock Live Update & APP Shop
  • CPU
    – Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
    – Supports CPU up to 95W
    – Digi Power design
    – 5 Power Phase design
    – Supports Intel® Turbo Boost 2.0 Technology
    – Supports ASRock Hyper BCLK Engine
  • Chipset
    – Intel® B150
    – Supports Intel® Small Business Basics
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 4 x DDR4 DIMM Slots
    – Supports DDR4 2133 non-ECC, un-buffered memory
    – Supports ECC UDIMM memory modules (operate in non-ECC mode) *
    – Max. capacity of system memory: 64GB*
    – Supports Intel® Extreme Memory Profile (XMP) 2.0
    – 15μ Gold Contact in DIMM Slots

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    Please refer to Memory Support List on ASRock’s website for more information.
  • BIOS
    – 64Mb AMI UEFI Legal BIOS with multilingual GUI support
    – ACPI 5.0 Compliant wake up events
    – SMBIOS 2.7 Support
    – CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment
  • Graphics
    – Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530
    – Pixel Shader 5.0, DirectX 12
    – Max. shared memory 1024MB*
    – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
    – Supports Accelerated Media Codecs: HEVC, VP8, VP9
    – Supports HDCP with DVI-D Port
    – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

    *The size of maximum shared memory may vary from different operating systems.

    **Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

  • Audio
    – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
    – Premium Blu-ray Audio support
    – Supports Surge Protection (ASRock Full Spike Protection)
    – ELNA Audio Caps

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    – Gigabit LAN 10/100/1000 Mb/s
    – Giga PHY Intel® I219V
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    – 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
    – 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    – Supports AMD Quad CrossFireX™ and CrossFireX™

    *If M2_1 slot is occupied by a PCIe-type M.2 device, PCIE4 slot will run at x2 mode.
    Supports NVMe SSD as boot disks
  • Storage
    – 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
    – 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled.
    If PCIE4 slot is occupied, M2_1 slot will support M.2 PCI Express module up to Gen3 x2 (16 Gb/s).
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    – 1 x TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x CPU Fan Connector (4-pin)
    – 2 x Chassis Fan Connectors (4-pin)*
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

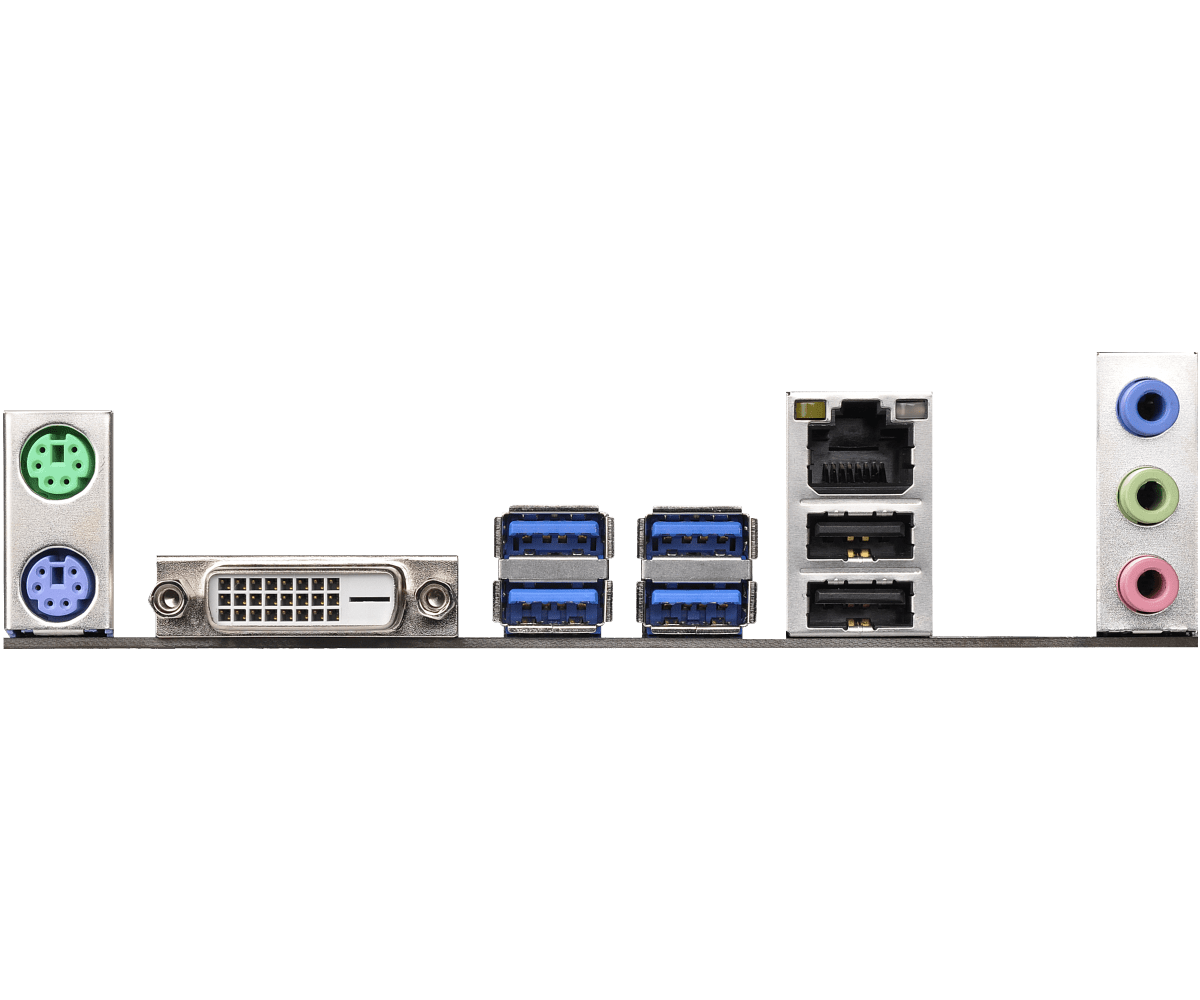

  • Rear Panel I/O
    – 1 x PS/2 Mouse Port
    – 1 x PS/2 Keyboard Port
    – 1 x DVI-D Port
    – 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock A-Tuning
    – ASRock Disk Health Report
    – ASRock USB Key
    – ASRock APP Charger
    – ASRock XFast LAN
    – ASRock XFast RAM
    – ASRock Fast Boot (Fast Boot, Restart to UEFI)
    UEFI
    – ASRock EZ Mode
    – ASRock My Favorites in UEFI
    – ASRock Instant Flash
    – ASRock Internet Flash
    – ASRock Crashless BIOS
    – ASRock OMG (Online Management Guard)
    – ASRock UEFI Tech Service
    – ASRock Easy Driver Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 1 x Screw for M.2 Socket
  • Hardware Monitor
    – CPU, Chassis temperature sensing
    – CPU, Chassis Fan Tachometer
    – CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    – CPU, Chassis Fan multi-speed control
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    – ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm
    – Solid Capacitor design
  • OS
    – Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

    *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
    For the updated Windows® 10 driver, please visit ASRock’s website for details.
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
