Sale!

V1000

18,358.98 (In. GST)

Fully modular cable design incorporates a single 1000W +12V output that delivers up to 83A.
80 PLUS Gold certified: up to 93% efficiency @ 50% load
Silent 135 mm FDB fan for lower noise and longer lifespan
Eight PCI-E 6+2 pin connectors to support high-end GPUs
100% high quality Japanese capacitor ensures performance and reliability.
Reliable 5 year warranty

Out of stock

Compare
SKU: NG00267 Categories: ,

Description

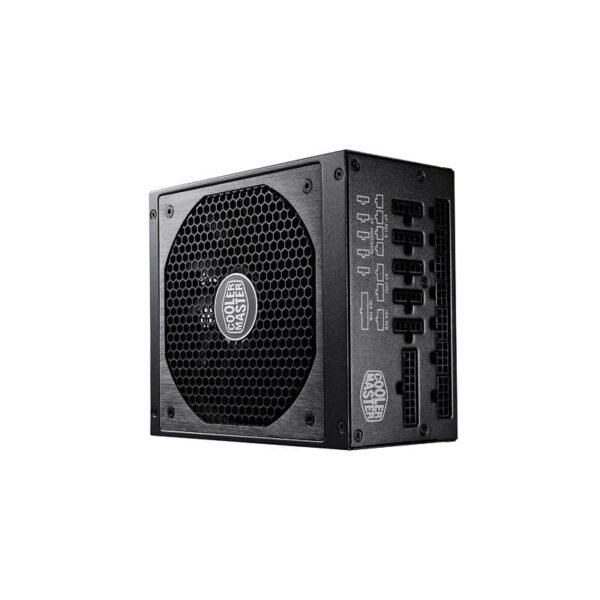

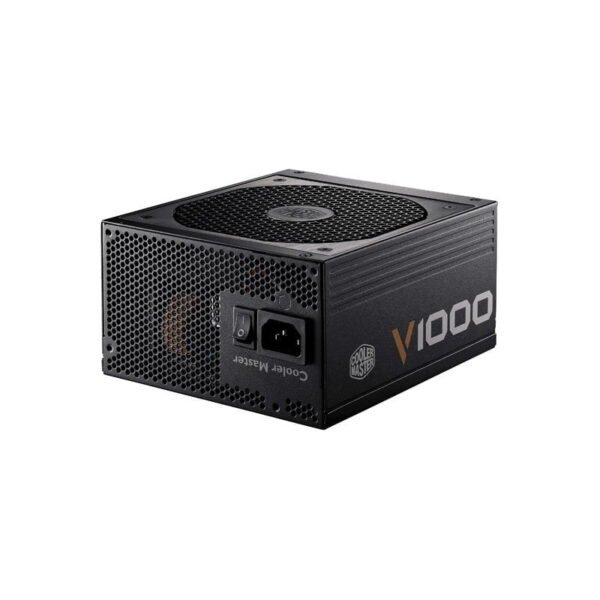

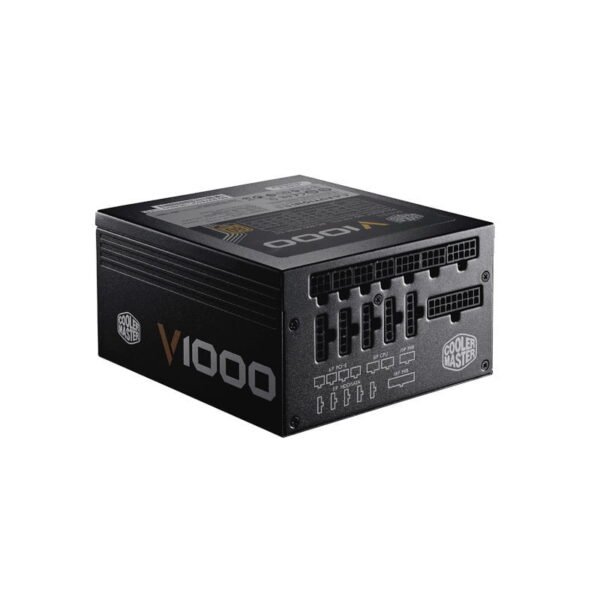

Cooler Master V1000 PSU

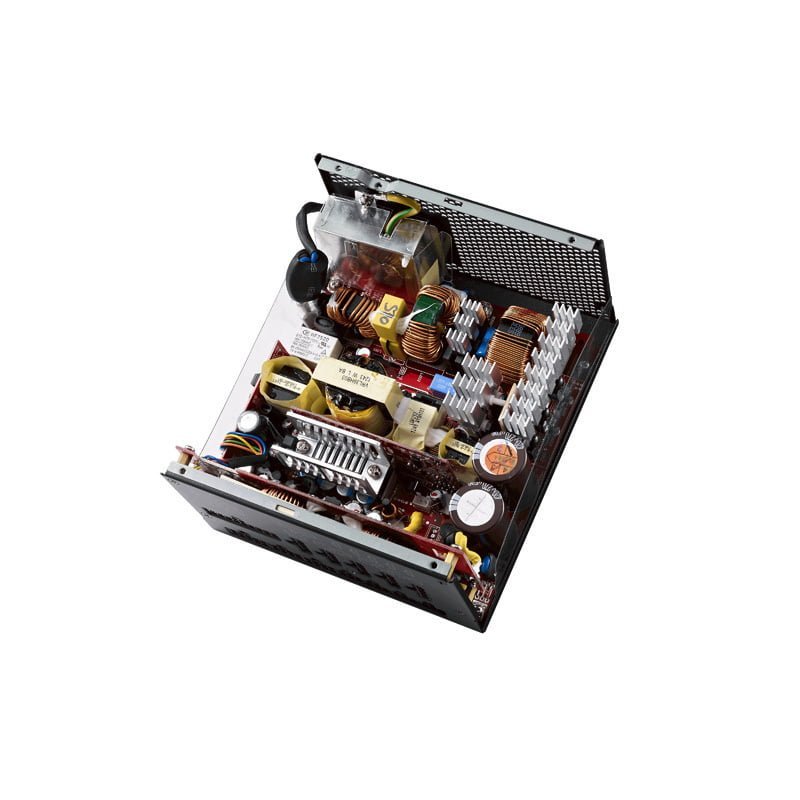

(A) High quality AC socket

(B) Double EMI filter for extremely
clean and stable voltages

(C) Full bgidge with LLC

(D) 100% highest grade
Japanese capactiors

(E) Highly efficient integrated
heatsink desigh



TIGHT VOLTAGE REGULATION

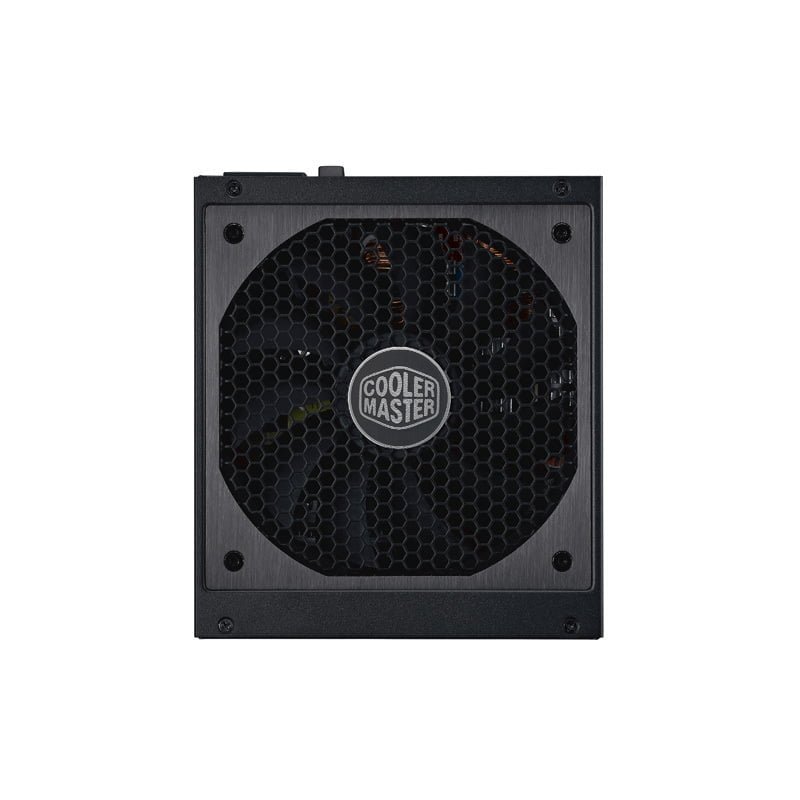

135MM FDB FAN DESIGN

AC INPUT / DC OUTPUT

SPECIFICATION

MODULAR Full Modular
MODEL RS-A00-AFBA-G1
PFC Active PFC (>0.9 typical)
ATX VERSION Intel Form Factor ATX 12V V2.31
DIMENSIONS (L X W X H) 150 x 170 x 86 mm / 5.9 x 6.7 x 3.4 inch
INPUT VOLTAGE 90-264Vac (Auto Range)
INPUT CURRENT 12-6A
INPUT FREQUENCY 60-50Hz
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME >17ms
EFFICIENCY 90% Typically
MTBF >100,000 Hours
PROTECTIONS OVP, UVP, OPP, OTP, SCP
OUTPUT CAPACITY 1000W
OPERATING TEMPERATURE 0-40°C
REGULATORY CE, TUV, TUV-SUDNRTL, FCC, GOST, CCC, BSMI, C-tick, KCC
FAN SIZE Silent FDB 135mm
CERTIFICATION 80 Plus Gold
MB 20+4 PIN CONNECTORS 1
CPU 12V 4+4 PIN CONNECTORS 2
PCI-E 6+2 PIN CONNECTORS 8
SATA CONNECTORS 9
PERIPHERAL 4-PIN CONNECTORS 4
FDD CABLE 4-PIN CONNECTORS 1
PRODUCT NAME V1000
WATTAGE Above 750W
80 PLUS Gold
SERIE V Gold Series



Additional information

Dimensions 15 × 17 × 8.6 cm
