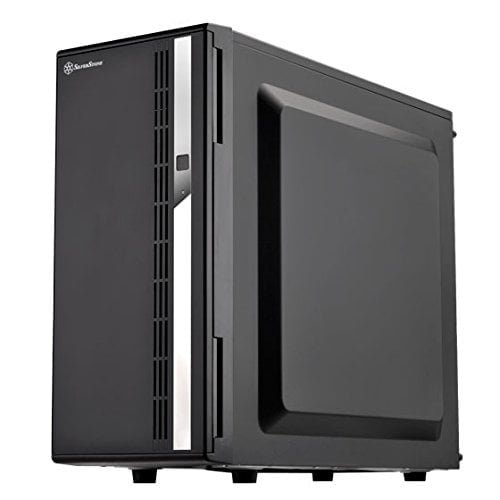

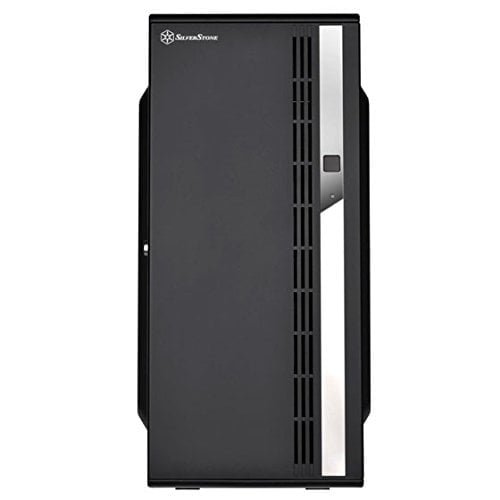

Silverstone Mini PC Case CS380

1.00 (In. GST)

Silverstone Cs380 compact Atx Mid Tower Computer Case, With Door, Black

CS380

■ Compact mid-tower chassis design with space-saving footprint

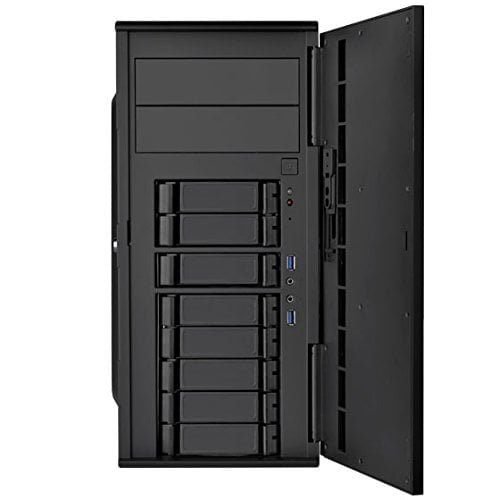

■ Supports eight hot-swappable 3.5″ or 2.5″ SAS/SATA drives with built-in backplane

■ Classic SilverStone styling

■ Includes two flexible 5.25″ drive bays for more storage options

■ Lockable front door and power button design

■ Includes three 120mm fans with filtered intake vents

Out of stock

Compare
SKU: NG00528 Categories: ,

Description

SPECIFICATIONS

Model No. SST-CS380B (black)
Material Plastic front door, steel body
Motherboard ATXMicro-ATXMini-ITX
Drive bay External 5.25″ x 2
3.5″ SAS**/SATA hot-swap x 8 (2.5″ compatible)
Internal
Cooling system Front
Rear 1 x 120mm fan (Compatible with 120mm fan/radiator)
Side Dedicated drive bracket 120mm fan x 2
Top
Bottom
Internal
Expansion slot 7
Front I/O port USB 3.0 Type-A x 2
Audio x 1
MIC x 1
Power supply Standard PS2(ATX)
Expansion card Compatible up to 9.5″ (241mm), width restriction – 5.9″ (149mm)
Limitation of CPU cooler 146mm
Dimension 215.3mm (W) x 426.5mm (H) x 487.5mm (D) , 44.7 Liters
8.48″ (W) x 16.79″ (H) x 19.19″ (D) , 44.7 Liters
Remark
* Black interior – serial numbers BSCS380B19200001 or after (V2.0)
** Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05)
