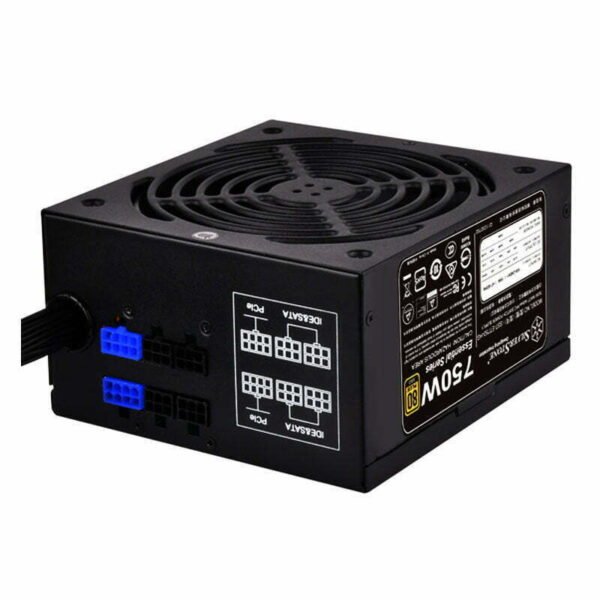

SilverStone ET750-HG SMPS – 750 Watt 80 Plus Gold

7,140.00 (In. GST)

ET750-HG

■ High efficiency with 80 PLUS Gold certification

■ Semi-modular cables facilitate cable management

■ 24/7 continuous power output with 40°C operating temperature

■ Class-leading single +12V rail

■ Silent running 140mm fan with 18 dBA

■ PCIe 8pin and PCIe 6pin connectors support

■ All-black flat cables design

■ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)

Out of stock

Compare
SKU: NG00643 Category:

Description

SilverStone ET750-HG SMPS – 750 Watt 80 Plus Gold Certification Semi Modular PSU With Active PFC

SilverStone ET750-HG SMPS

1.Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
2.Built-in 140mm fan has excellent airflow and low noise, perfect for quiet home or office use.

SilverStone ET750-HG SMPS

SilverStone ET750-HG SMPS

SPECIFICATIONS

Model No.
SST-ET750-HG
Max. DC Output
750W
Power density
363W per liter
Load Range
+3.3V +5V +12V +5VSB -12V
Max.(Amps)
22A 22A 62A 2.5A 0.3A
Peak (Amps)
/ / / 3.0A /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
120W
Combined +12V
744W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Connectors
V1.1
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
4 x 8 / 6-Pin PCIe connector (“500mm / 150mm” x 2)
9 x SATA connector (“500mm / 150mm / 150mm” x 3)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)V1.2
1 x 24 / 20-Pin motherboard connector (500mm)
*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)
4 x 8 / 6-Pin PCIe connector (“500mm / 150mm” x 2)
9 x SATA connector (“500mm / 150mm / 150mm” x 3)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)

Cooling System
Single 140mm silent fan
Form factor
Noise Level
18dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 160 mm (D)
5.91″ (W) x 3.39″ (H) x 6.3″ (D)
Weight
2 Kg
Certification
80 PLUS Gold
Other
GPU Support list
Compatible with ATX12V v2.4
*Dual (CPU) EPS connectors is used in production batch with serial numbers starting 2029 or after.
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
