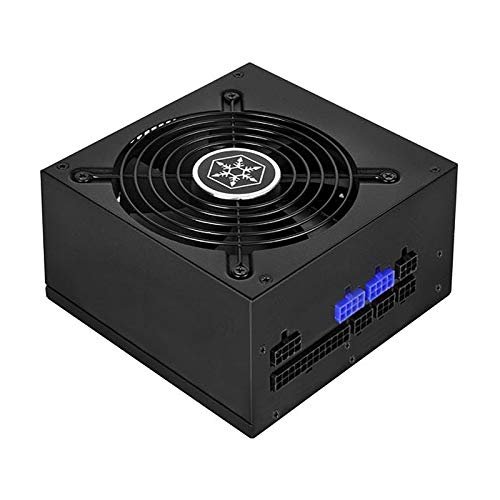

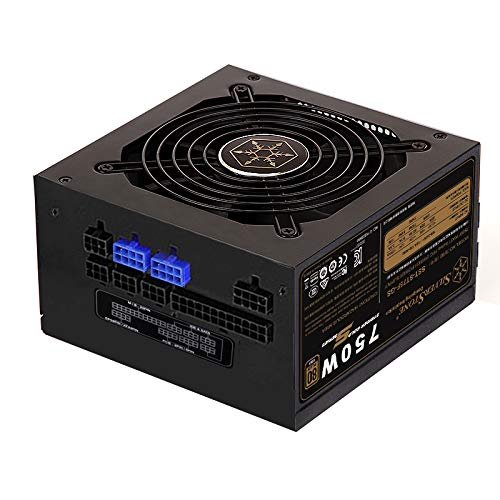

Silverstone 750W PSU ST75F-GS

1.00 (In. GST)

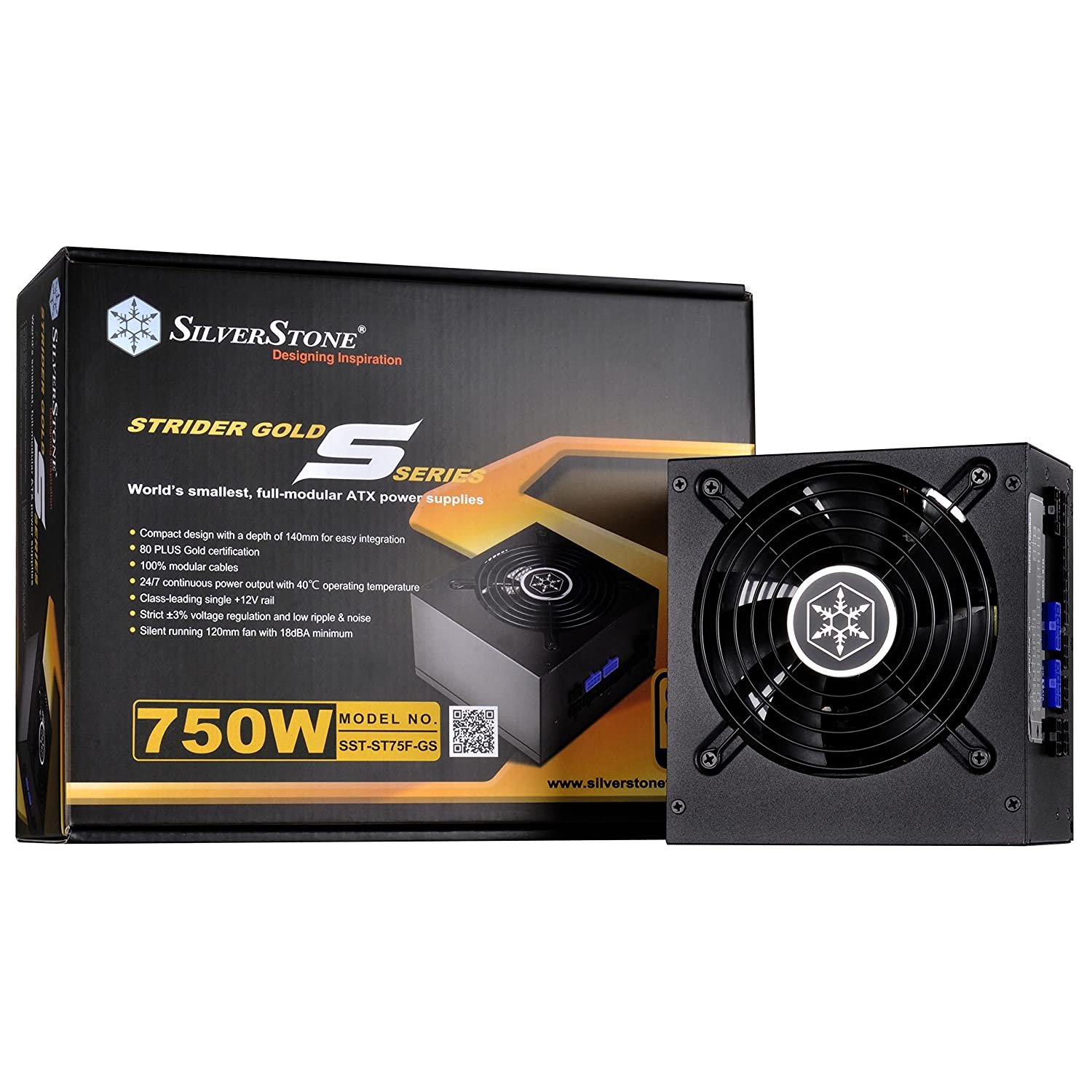

SilverStone SST-ST75F-GS v 2.0 – Strider Gold S Series, 750W 80 Plus Gold ATX PC Power Supply, Low Noise 120mm, 100% modular

ST75F-GS

■ Compact design with a depth of 140mm for easy integration

■ 80 PLUS Gold certification

■ 100% modular cables

■ 24/7 continuous power output with 40℃ operating temperature

■ Class-leading single +12V rail

■ Strict ±3% voltage regulation and low ripple & noise

■ Silent running 120mm fan with 18dBA minimum

Out of stock

Compare
SKU: NG00525 Categories: ,

Description

SPECIFICATIONS

Model No.
SST-ST75F-GS (V3.0)
Max. DC Output
750W
Load Range
+3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62A 2.5A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Power density
415W per liter
Color
Black (lead-free paint)
Combined +3.3V & +5V
100W
Combined +12V
744W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.(PF>0.9 at Full Load)
Efficiency
87%~90% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over current protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector(600mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
4 x 8/6-Pin PCIE connector(”550mm”)
8 x SATA connector(”600mm /150mm / 150mm / 150mm” x 2)
6 x 4-Pin Peripheral connector(”600mm / 150mm / 150mm” x 2)
2 x 4-Pin Floppy connector(150mm)
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D)
Weight
1.31 kg
Certification
80 PLUS Gold
Other
GPU Support list
Compatible with ATX12V v2.4
● ST75F-GS(V3.0) is 100% modular cable design power supply, and the 24 pin connector design is 18+10pin to 24pin (20+4) +4 pin. Therefore, the PP05-E and PP06 24pin cables can’t be used in ST75F-GS(V3.0)
