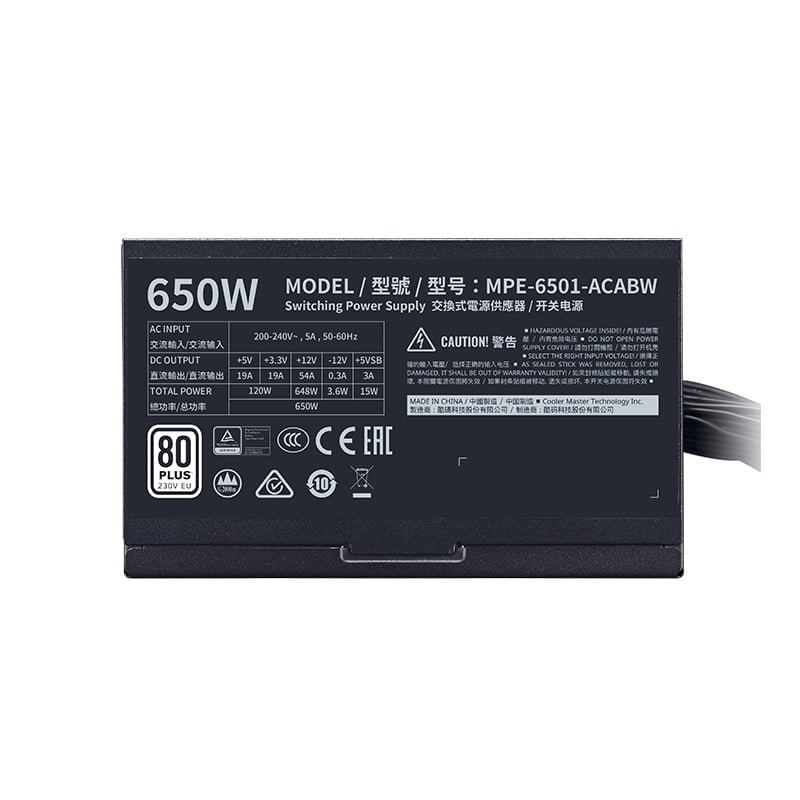

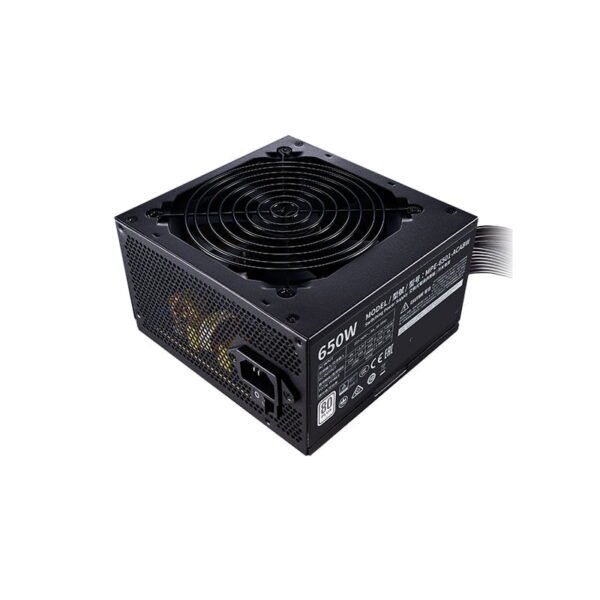

Cooler Master MWE 650 WHITE 230V – V2 PSU
The MWE White offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS White efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great core computing experience, you can’t go wrong with the MWE White.
80 PLUS STANDARD 230V EU CERTIFIED
It’s important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn’t need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn’t necessarily either of those things. The MWE White guarantees a typical efficiency of 85% while being both safe and reliable.
120MM HDB FAN
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE White’s solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system’s temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.
SINGLE +12V RAIL
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system’s overall performance. That’s why the MWE White only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.
DC-TO-DC CIRCUIT DESIGN
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White’s DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS efficiency, and reduced risk to your connected components.
FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be on of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE White uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
CABLE LENGTH/OUTPUT RATING
|ATX VERSION||ATX 12V V2.52|
|DIMENSIONS (L X W X H)||140 x 150 x 86 mm|
|FAN SPEED||2400 RPM|
|NOISE LEVEL @ 20%||16.54 dBA|
|NOISE LEVEL @ 50%||26.5 dBA|
|NOISE LEVEL @ 100%||42.5 dBA|
|80 PLUS RATING||80 PLUS Standard 230V EU|
|ERP 2014 LOT 3||Yes|
|POWER GOOD SIGNAL||100-500ms|
|HOLD UP TIME||>14ms at 100% Full Load@230Vac|
|PROTECTIONS||OVP, OPP, SCP, UVP, OTP|
|REGULATORY||CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB|
|ATX 24-PIN CONNECTORS||1|
|EPS 4+4 PIN CONNECTORS||1|
|EPS 8 PIN CONNECTOR||1|
|PERIPHERAL 4-PIN CONNECTORS||3|
|PCI-E 6+2 PIN CONNECTORS||4|
|WATTAGE||500 to 750W|
|SERIE||MWE White Series|
