Description

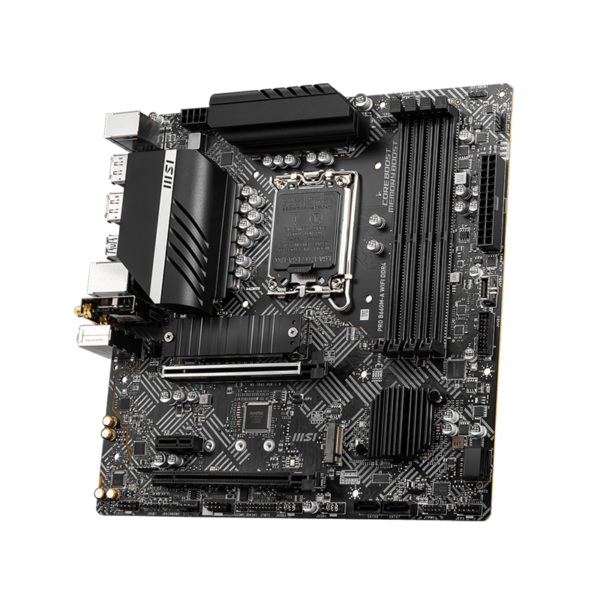

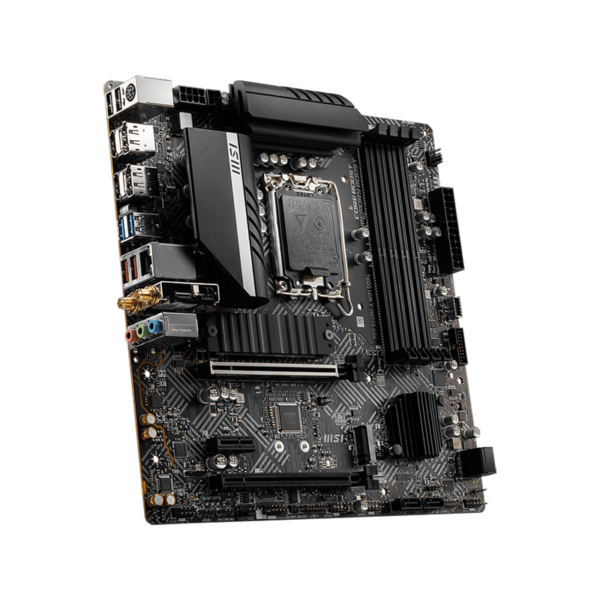

MSI Pro B660M-A WiFi DDR4 Intel Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR
MSI Pro B660M-A WiFi DDR4 Intel Motherboard
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
MSI Pro B660M-A WiFi DDR4 Intel Motherboard
Specification
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® B660 Chipset |
| DDR4 MEMORY | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 1 |
| SATAIII | 4 |
| M.2 SLOT | 2 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6 module |
| USB 3.2 PORTS (FRONT) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 2(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAYPORT | 2 |
| HDMI | 2 |
| DIRECTX | 12 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | MATX |
