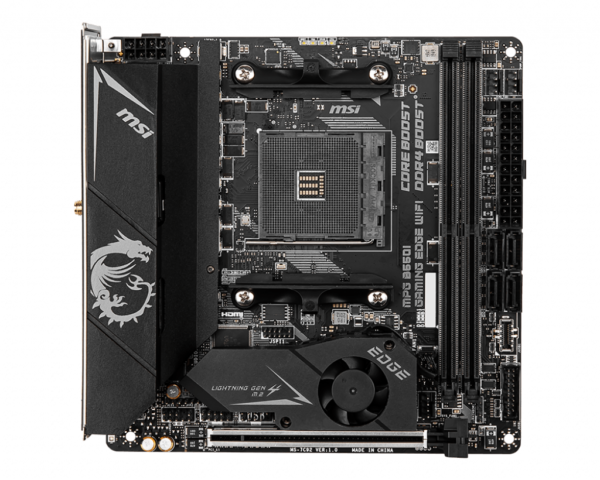

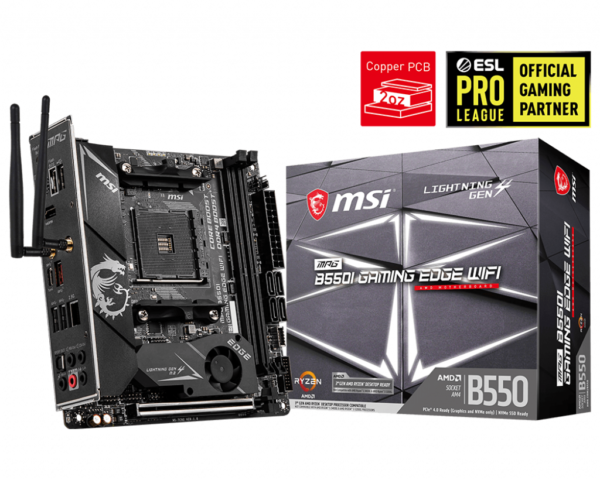

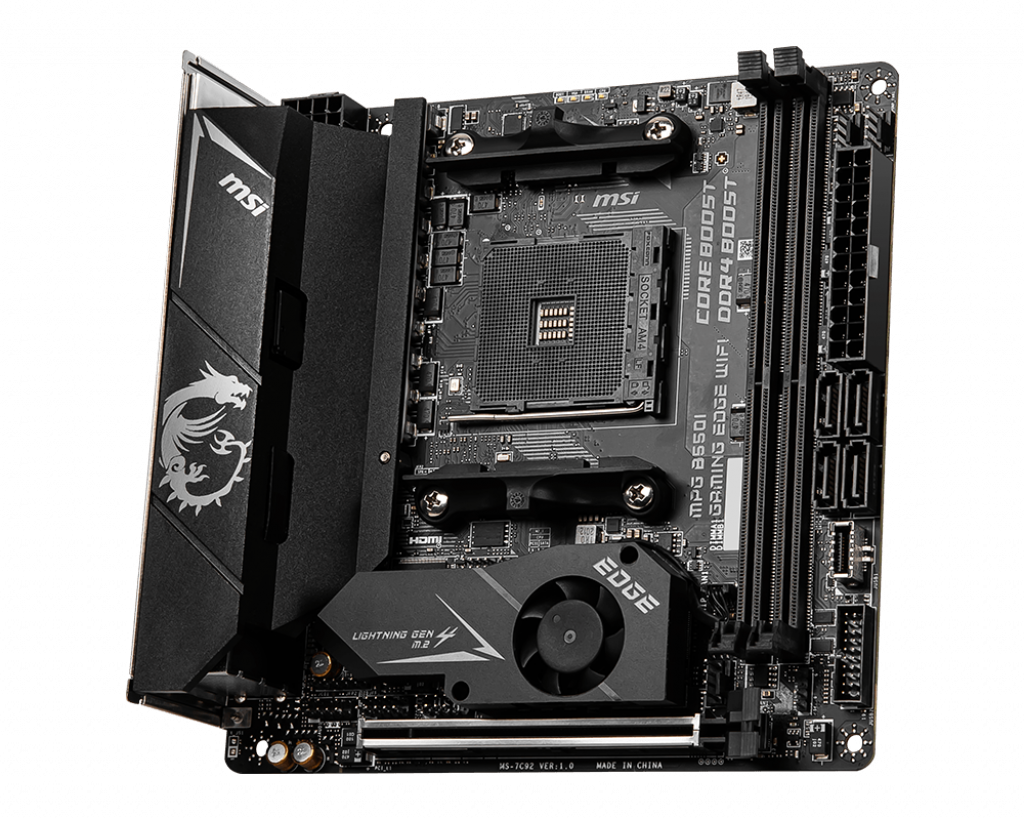

MSI MPG B550I GAMING EDGE WIFI

20,909.00 (In. GST)

Out of stock

Compare
SKU: NG00031 Categories: ,

Description

MPG B550I GAMING EDGE WIFI

GAME IN STYLE

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector
  • Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • HDMI 2.1: Support 4K display with up to 4096×2160@60Hz
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Audio Boost: Reward your ears with studio grade sound quality

CPU

Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4466/ 4533/ 4600+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4600 MHZ
      • 1DPC 2R max speed 4000 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOTS

  • 1x PCIe 4.0/ 3.0 x16 slot 1
  1. The supported specification depends on installed processor.

ONBOARD GRAPHICS

  • 1x HDMI 2.0/ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1
  • Maximum shared memory of 2048 MB
  1. Available for the processor with integrated graphics.

STORAGE

AMD B550 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0×4
      • Supports 2280 storage devices
  1. The supported specification depends on installed processor.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port) on the back panel
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & 8LUETOOTH®

Intel® AX200

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.1

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x 3-pin RAINBOW LED connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED

BACK PANEL PORTS

  1. USB 2.0
  2. Wi-Fi / Bluetooth
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. LAN Port
  5. HD Audio Connectors
  6. BIOS Flashback Button
  7. PS/2 Combo Port
  8. HDMI Port
  9. USB 3.2 Gen 2 10Gbps (Type-C)
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. Optical S/PDIF OUT
MPG B550I GAMING EDGE WIFI

I/O CONTROLLER

  • NUVOTON NCT6687-R Controller Chip

DIMENSIONS

  • Mini-ITX Form Factor
  • 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

BOX CONTENT

MPG B550I GAMING EDGE WIFI

Additional information

Weight 1 kg
