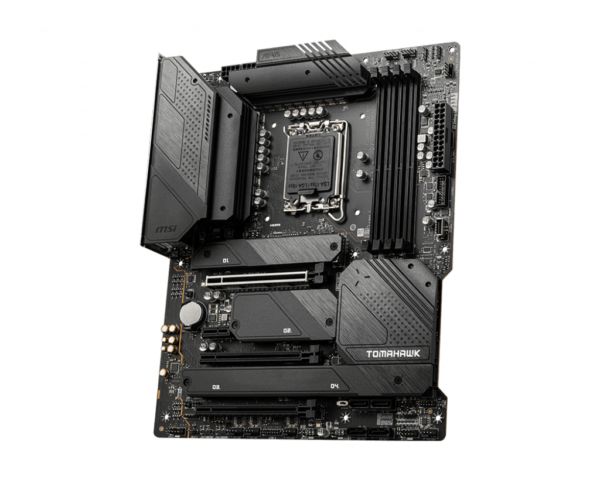

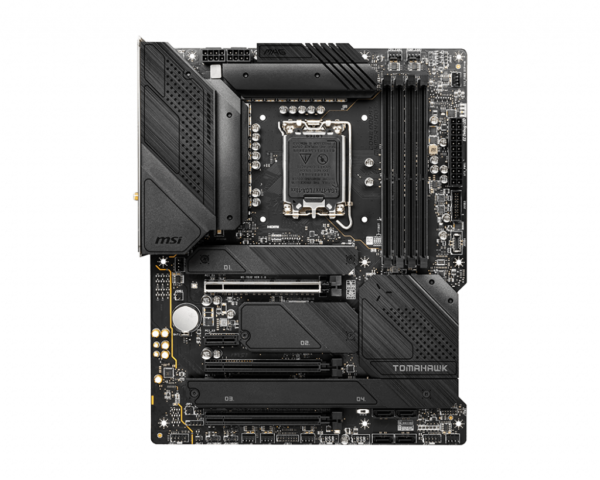

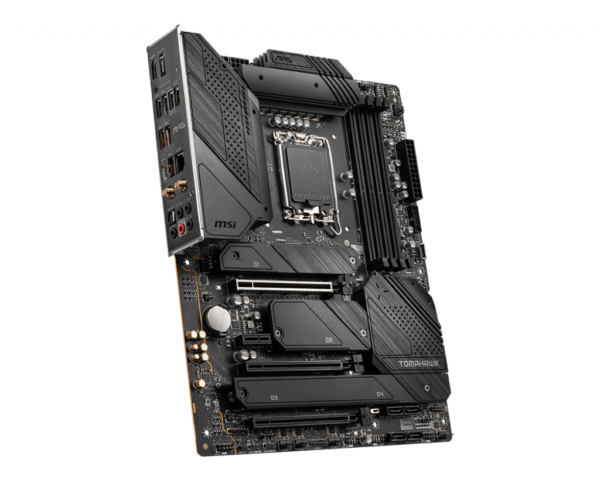

MSI MAG Z690 Tomahawk WiFi DDR4 Gaming Motherboard

28,600.00 (In. GST)

  • supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5200(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for high-performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Warranty  3 Years

2 in stock

Compare
SKU: NG00987 Category:

Description

MAG Z690 TOMAHAWK WIFI DDR4

MSI MAG Z690 TOMAHAWK WIFI DDR4





SPECIFICATION

CPU (MAX SUPPORT) i9
SOCKET 1700
CHIPSET Intel® Z690 Chipset
DDR4 MEMORY 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL Dual
DIMM SLOTS 4
MAX MEMORY (GB) 128
PCI-E X16 3
PCI-E X1 1
SATAIII 6
M.2 SLOT 4
RAID 0/1/5/10
LAN 1x Intel® I225-V 2.5G LAN
WIFI & BLUETOOTH Intel® Wi-Fi 6 module
USB 3.2 PORTS (FRONT) 1(Gen 2, Type C), 2(Gen 1, Type A)

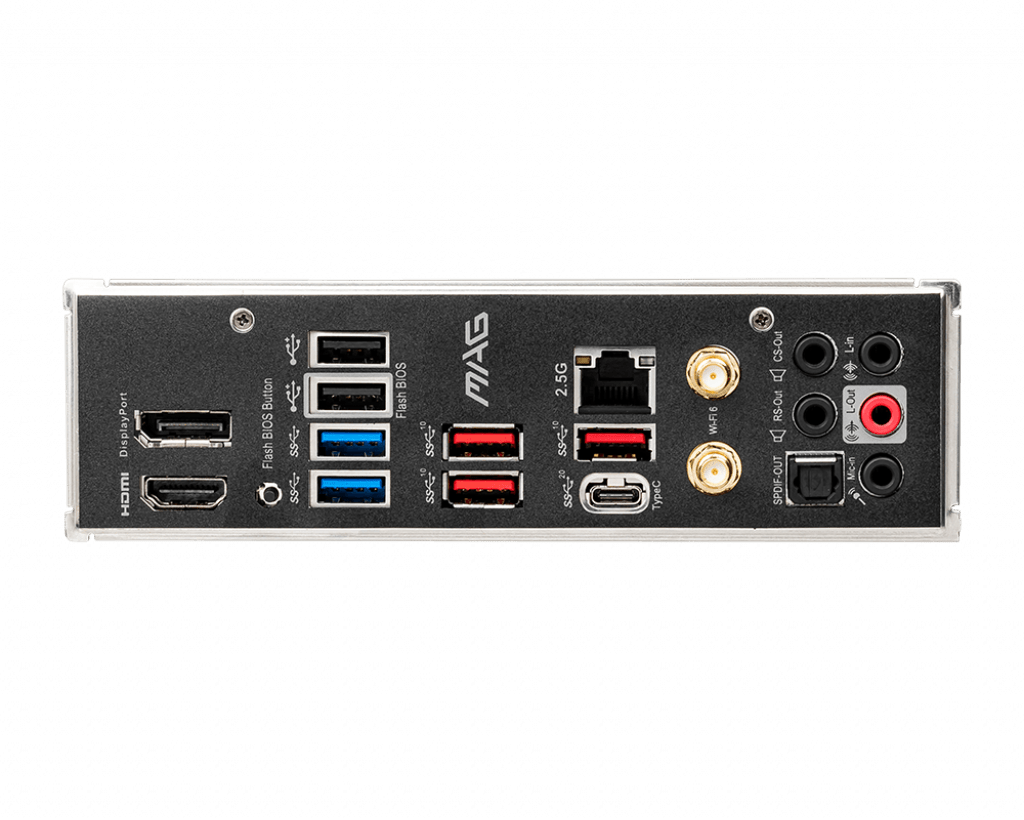

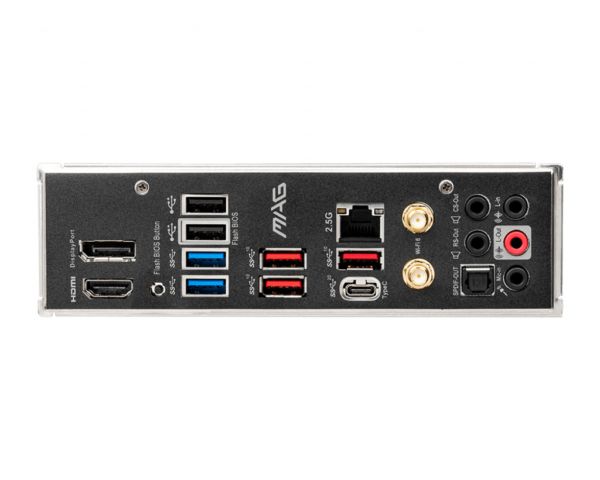

USB 3.2 PORTS (REAR) 1(Gen 2×2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT) 4
USB 2.0 PORTS (REAR) 2
AUDIO PORTS (REAR) 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
DISPLAYPORT 1
HDMI 1
DIRECTX 12
FORM FACTOR ATX
CROSSFIRE Y
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
