MSI H81M-E33

(1 customer review)

4800

1 in stock

SKU: NG00192 Categories: ,
Spread the love
  •
  •
  •
  •
  •
  •

Description

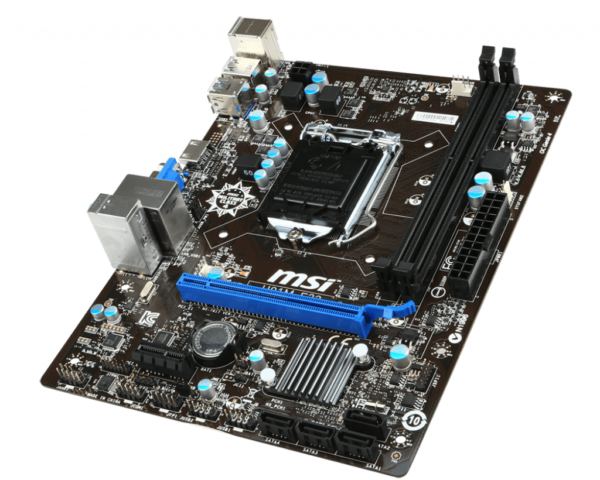

MSI H81M-E33 Mother board

Description
– Improved AMD Graphic card compatibility.
– Improved memory compatibility.
– Support PSC B-die DDR3 Memory
– Fixed Realtek lan still can work after disable “Onboard LAN Controller” in BIOS.
– Updated VBIOS and GOP Driver.
– Hide item “IGD Multi-Monitor” when “Initiate Graphic Adapter” set to IGD.

CPU
• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket

Chipset
• Intel® H81 Express

Main Memory
• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
– Supports Dual-Channel mode

 Slots

• 1 x PCIe 2.0 x16 slot
• 1 x PCIe x1 slot

On-Board SATA
SATAIII controller integrated in Intel® H81 chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by H81

• SATAII controller integrated in Intel® H81 chipset
– Up to 3Gb/s transfer speed.
– Supports two SATAII ports (SATA3~4) by H81

USB 3.0

• 2 x USB 3.0 ports on the back panel (rear x 2)

Audio
• Chip integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 spec

LAN
• Supports Gb LAN 10/100/1000 by Realtek® RTL8111G

Internal I/O Connectors

– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– CPU x 1 / System x 2 FAN connectors
– 1 x Clear CMOS jumper
– 2 x SATAIII connectors
– 2 x SATAII connectors
– 2 x USB 2.0 connectors
– 1 x Serial port connector
– 1 x Trusted Platform Module (TPM) header
– 1 x Front Panel Audio connector
– 1 x Chassis Intrusion connector

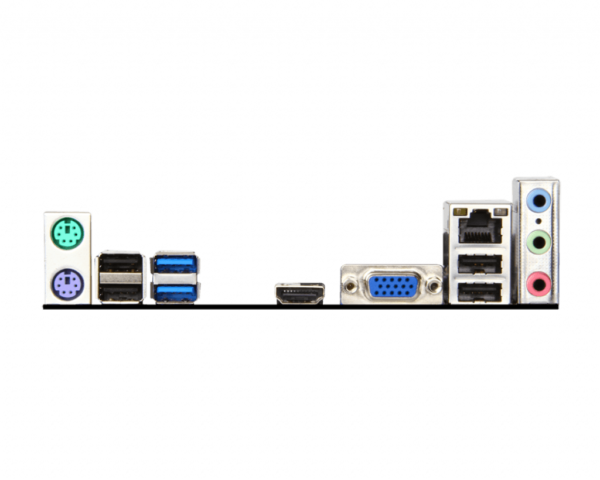

Back Panel I/O Ports

– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x Graphic Card port
– 1 x HDMI port

BIOS

• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 22.6cm(L) x 17.3cm(W) Micro-ATX Form Factor

 Mounting

• 6 mounting holes



Spread the love
  •
  •
  •
  •
  •
  •

Additional information

Weight 1 kg
Dimensions 22.6 × 17.3 cm

1 review for MSI H81M-E33

  1. vivekramkumar1512 (verified owner)

    simply great motherboard, my hands on experience with this bios is awesome and good OC capability those who looking intel 4th gen motherboard just buy it good for i5, i7 gaming, am using heavy 1080p gaming in this motherboard its awesome.
