MSI B560M PRO E MOTHERBOARD

7,400.00 (In. GST)

B560M PRO-E For Intel Processor

  • Supports 10th Gen Intel® Core™ , 11th Gen Intel® Core™ , Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.

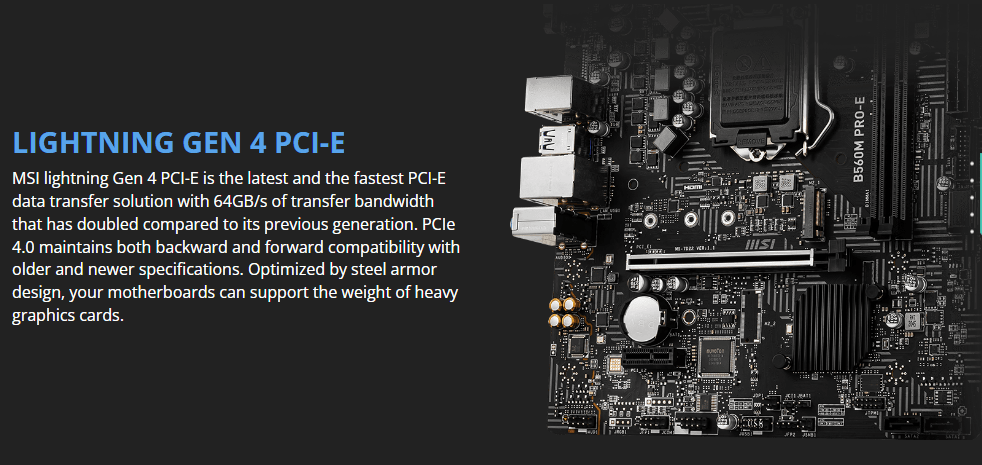

  • Lightning Fast Experience :  PCIe 4.0
  • Turbo M.2 :  Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost :  Reward your ears with studio grade sound quality
  • Steel Armor :  Protecting VGA cards against bending and EMI for better performance, stability and strength.

5 in stock

Compare

Description

msi b560m pro emsi b560m pro e intel motherboard



SPECIFICATION

CPU (MAX SUPPORT) i9
SOCKET 1200
CHIPSET Intel® B560 Chipset
DDR4 MEMORY 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
MEMORY CHANNEL Dual
DIMM SLOTS 2
MAX MEMORY (GB) 64
PCI-E X16 1
PCI-E GEN Gen4
PCI-E X1 1
SATAIII 4
M.2 SLOT 1
TPM (HEADER) 1
LAN 1x Intel® I219V Gigabit LAN controller
USB 3.2 PORTS (FRONT) 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT) 2
USB 2.0 PORTS (REAR) 4
SERIAL PORTS(FRONT) 1
AUDIO PORTS (REAR) Realtek® ALC892/ ALC897 Codec
VGA 1
HDMI 1
FORM FACTOR MATX
OPERATING SYSTEM Support for Windows® 10 64-bit
