48% off

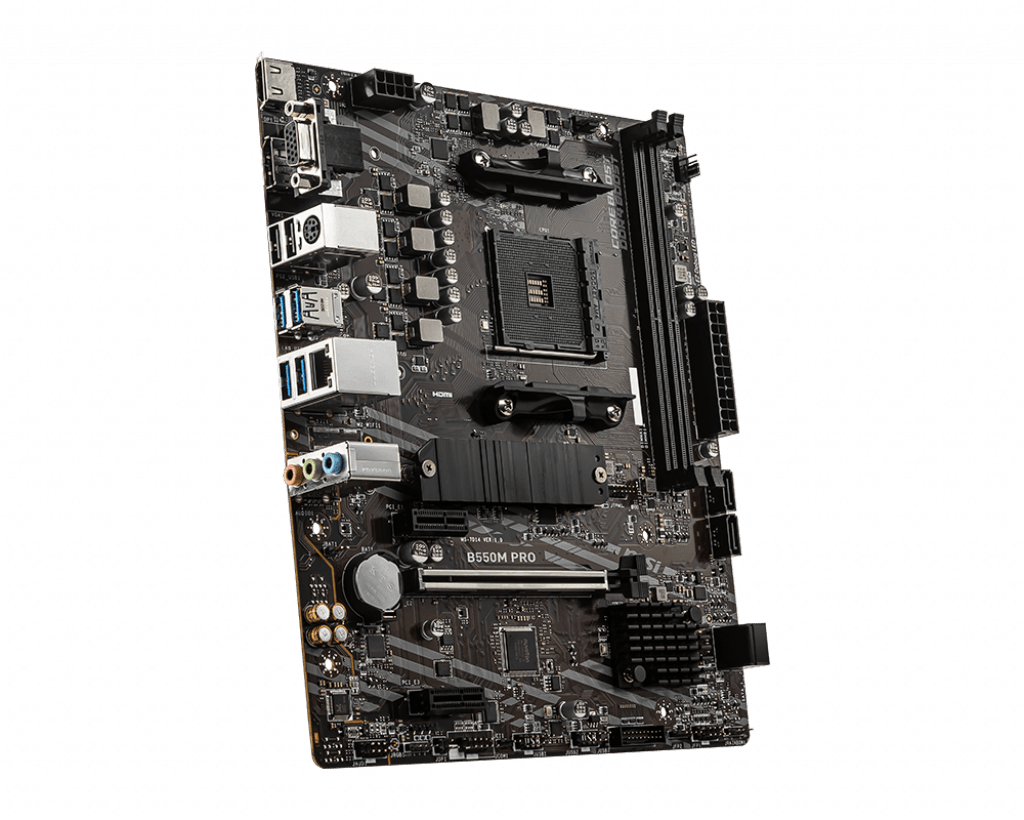

MSI B550M Pro Motherboard

9,100.00 (In. GST)

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software that integrates all MSI exclusive tools with a user-friendly user interface

3 in stock

Compare

Description

msi b550m pro motherboard

FAST AND FUTURE-READY STORAGE

MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.



SPECIFICATION



CPU (MAX SUPPORT) Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors
SOCKET AMD Socket AM4
CHIPSET AMD® B550 Chipset
DDR4 MEMORY Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
MEMORY CHANNEL Dual
DIMM SLOTS 2
MAX MEMORY (GB) 64
PCI-E X16 1
PCI-E GEN Gen4 / Gen3
PCI-E X1 2
SATAIII 4
M.2 SLOT 1
RAID 0/1/10
TPM (HEADER) 1
LAN 1x Realtek® RTL8111H Gigabit LAN
USB 3.2 PORTS (FRONT) 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT) 4
USB 2.0 PORTS (REAR) 2(Type A)
SERIAL PORTS(FRONT) 1
AUDIO PORTS (REAR) Realtek® ALC892/ALC897 Codec
DISPLAYPORT 1
VGA 1
HDMI 1
DIRECTX 12
FORM FACTOR M-ATX
OPERATING SYSTEM Support for Windows® 10 64-bit
