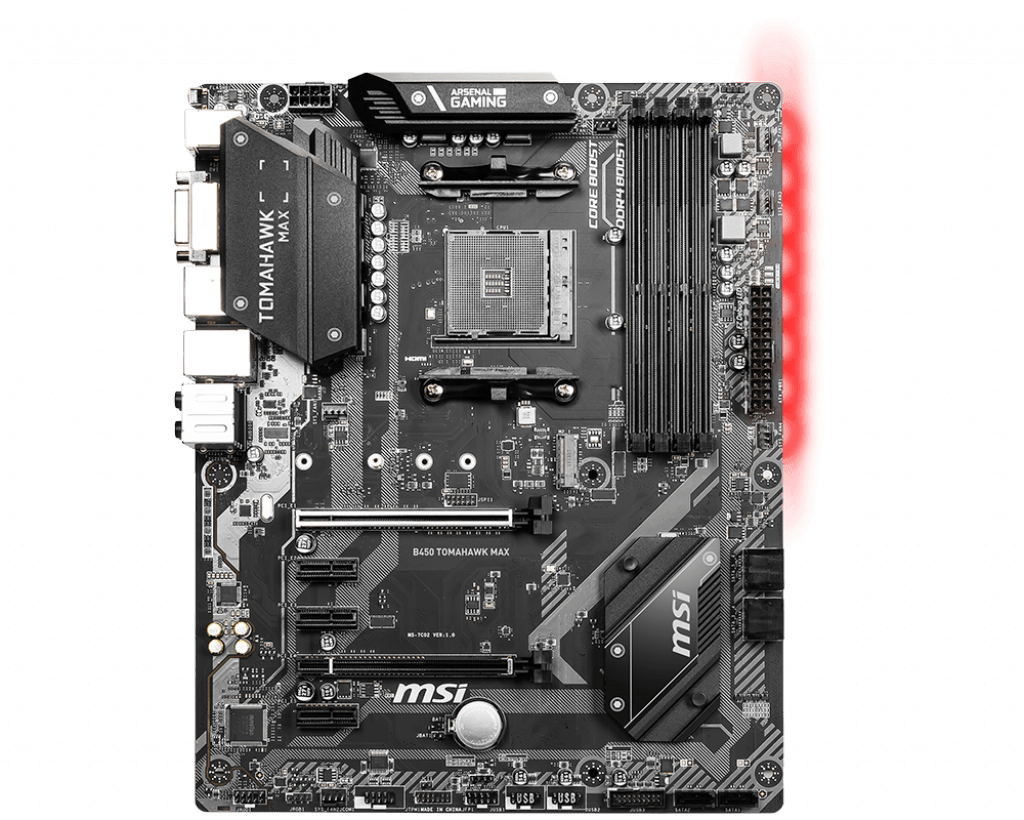

Military style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost:Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
AMD® B450 Chipset
- 4 x DDR4 memory slots, support up to 128GB *ComboPI 188.8.131.52-based and above BIOS are required.
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- For AMD Ryzen Gen3 (R5/R7/R9)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
- For AMD Other CPU
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- 1 x PCIe 3.0 x16 slot (PCI_E1)
- 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed
- PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.
- 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz1,2
- 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@30Hz, 2560×1600@60Hz1,2
- Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors
- Maximum shared memory of 2048 MB
- Supports 2-Way AMD® CrossFire™ Technology
- 2 x SATA 6Gb/s ports1
- 1 x M.2 slot (Key M)1
- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- 4 x SATA 6Gb/s ports
- SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
- Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
- 1 x Realtek® 8111H Gigabit LAN controller
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Serial Port connector
- 1 x Clear CMOS jumper
- 2 x 5050 RGB LED strip 12V connectors
BACK PANEL PORTS
- Flash BIOS Button
- PS/2 Combo Port
- USB 3.2 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D Port
- HDMI Port
- USB 3.2 Gen2 Type A+C
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
9 mounting holes
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
