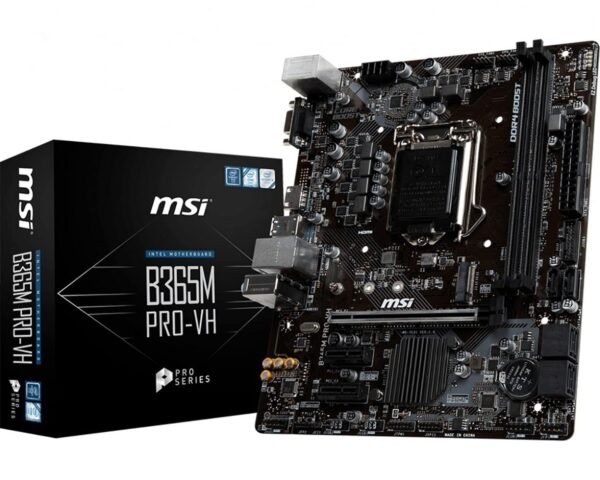

MSI B365M PRO VH/VDH INTEL MOTHERBOARD

6,500.007,080.00 (In. GST)

Intel LGA-1151 Micro-ATX motherboard with DDR4 2666MHz, Core Boost, DDR4 Boost, Audio Boost, and EZ Debug LED



  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666 MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • Audio Boost: Reward your ears with studio-grade sound quality.
  • EZ Debug LED: The easiest way to troubleshoot.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

Select your Model From the Dropdown List

Compare
SKU: N/A Categories: ,

Description

msi b365m pro vh intel motherboard



SPECIFICATION

CPU (MAX SUPPORT) i9
SOCKET 1151
CHIPSET Intel® B365 Chipset
DDR4 MEMORY 2666/ 2400/ 2133
MEMORY CHANNEL Dual
DIMM SLOTS 2
MAX MEMORY (GB) 32
PCI-E X16 1
PCI-E GEN Gen3
PCI-E X1 2
SATAIII 6
M.2 SLOT 1
RAID 0/1/5/10
TPM (HEADER) 1
LAN 1x Realtek RTL8111H
USB 3.1 PORTS (FRONT) 2(Gen1, Type A)
USB 3.1 PORTS (REAR) 4(Gen1, Type A)
USB 2.0 PORTS (FRONT) 4
USB 2.0 PORTS (REAR) 2
SERIAL PORTS(FRONT) 1
AUDIO PORTS (REAR) Realtek® ALC887 Codec
VGA 1
HDMI 1
DIRECTX 12
FORM FACTOR Micro-ATX
OPERATING SYSTEM Support for Windows® 10 64-bit

Additional information

Model

Pro-VH, Pro-VDH
