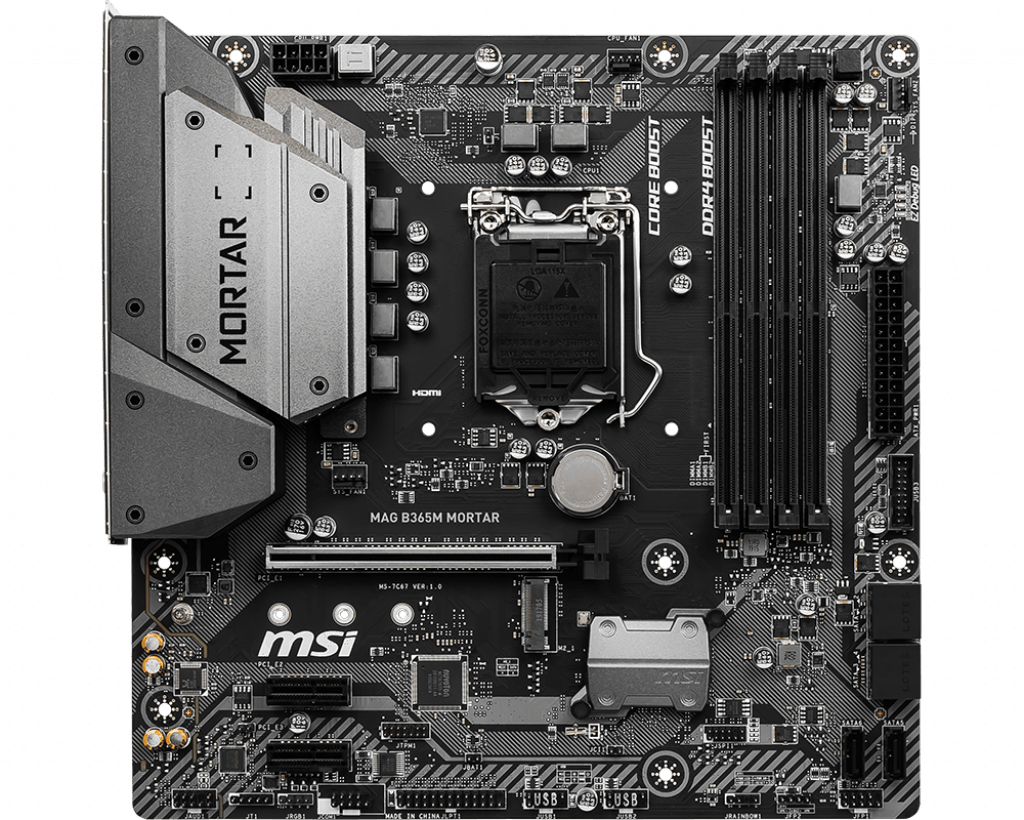

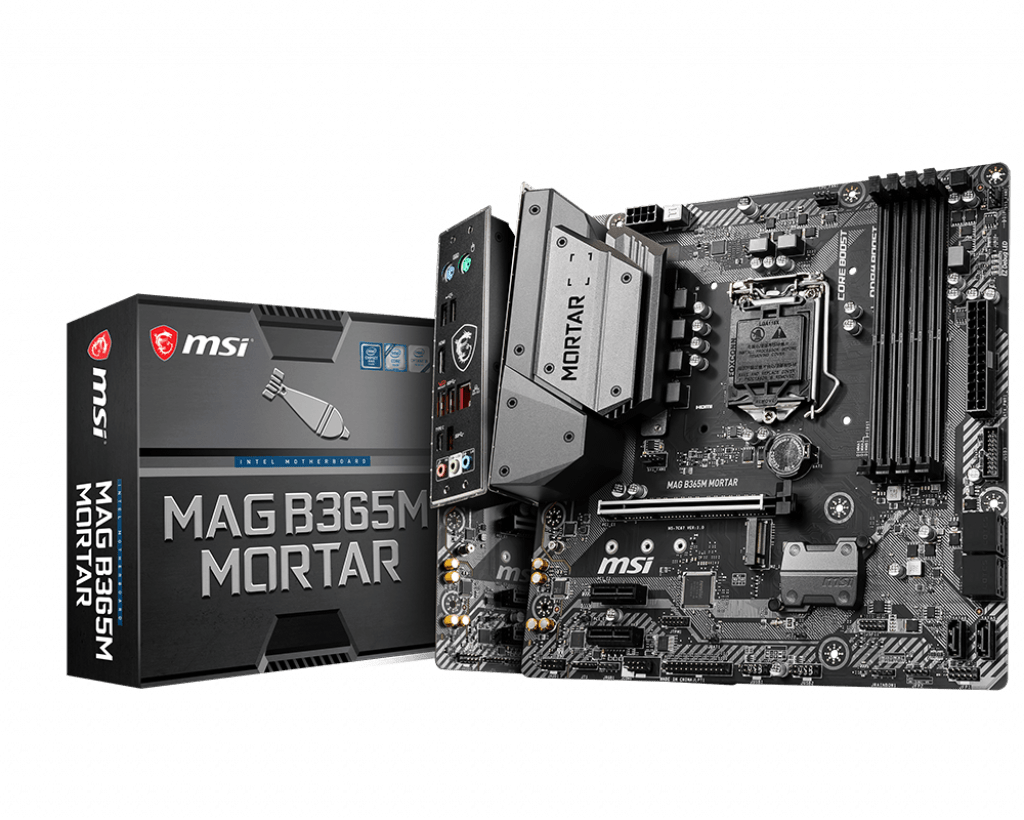

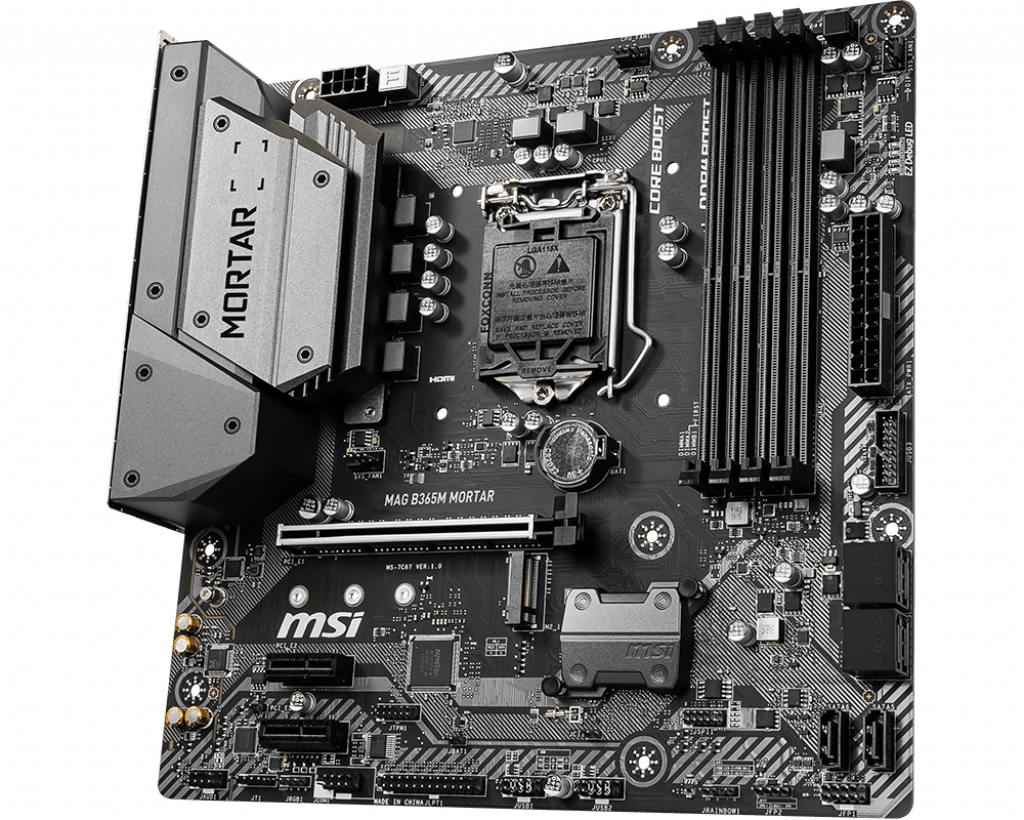

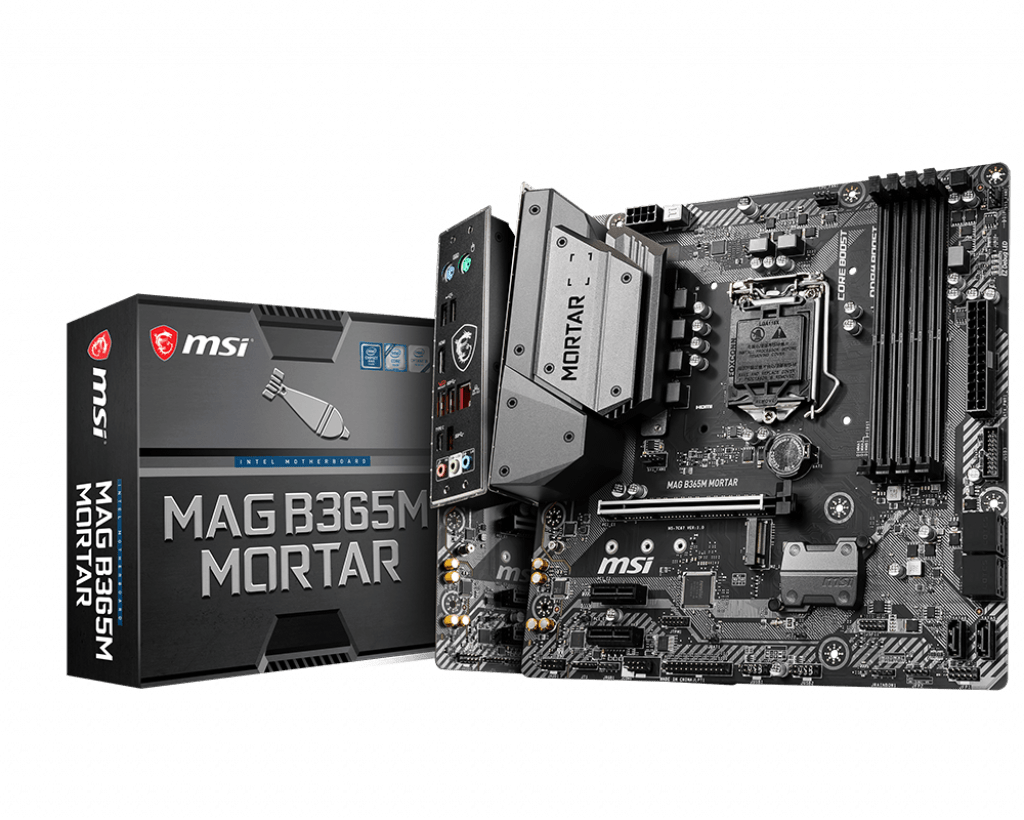

MSI B365M Mortar Intel Motherboard

7,100.00 (In. GST)

Military-style with Extended heatsink design for better thermal solution, Intel Gaming LAN, Pre-installed I/O Shielding, Core Boost, DDR4 Boost, Turbo M.2, and USB 3.1 connector



  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666 MHz
  • Intel Gaming LAN: Premium network solution from Intel® for professional and
    multimedia use. Delivers a secure, stable, and fast network connection
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Set Core Power Free: Extended Heatsink Design, Core Boost, DDR4 Boost
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Mystic Light Extension: Control both RGB and RAINBOW strips with independent LEDs added to your system with Mystic Light APP and mobile device
  • Dragon Center: A brand new software that integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with a user-friendly user interface.

Out of stock

Compare
SKU: NG00901 Categories: ,

Description



SPECIFICATION

CPU (MAX SUPPORT) i9
SOCKET 1151
CHIPSET Intel® B365 Chipset
DDR4 MEMORY 2666/ 2400/ 2133 MHz
MEMORY CHANNEL Dual
DIMM SLOTS 4
MAX MEMORY (GB) 64
PCI-E X16 1
PCI-E GEN Gen3
PCI-E X1 2
SATAIII 6
M.2 SLOT 1
RAID 0/1/5/10
TPM (HEADER) 1
LAN 1x Intel® I219-V
USB 3.1 PORTS (FRONT) 2(Gen1, Type A)
USB 3.1 PORTS (REAR) 4(Gen1, Type A)
USB 2.0 PORTS (FRONT) 4
USB 2.0 PORTS (REAR) 2
SERIAL PORTS(FRONT) 1
PARALLEL PORT(FRONT) 1
AUDIO PORTS (REAR) Realtek® ALC892 Codec
HDMI 1
DIRECTX 12
FORM FACTOR Micro ATX
OPERATING SYSTEM Support for Windows® 10 64-bit
