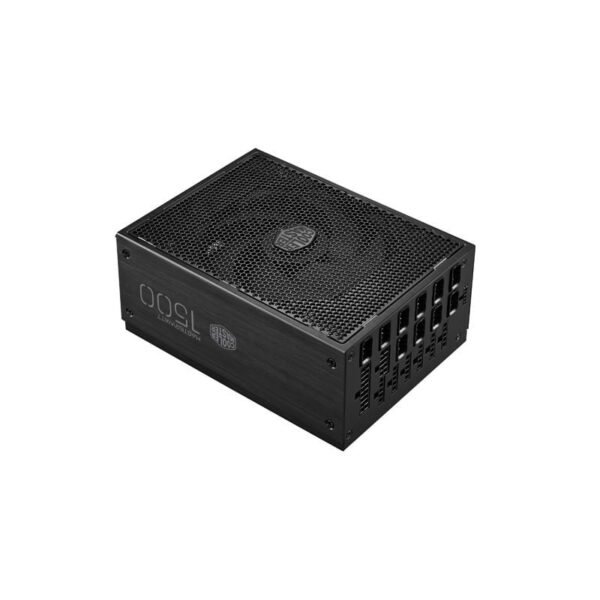

MASTERWATT MAKER 1500 PLUS

62,933.00 (In. GST)

FULL MODULAR DIGITAL 80 PLUS TITANIUM CERTIFIED POWER SUPPLY
DIGITAL POWER SUPPLY
MASTERPLUS+ SOFTWARE
SILENCIO 135MM LDB FAN
FULL-MODULAR, HIGH CAPACITY CABLES
80 PLUS TITANIUM EFFICIENCY
7 YEAR WARRANTY

Out of stock

Compare
SKU: NG00269 Categories: ,

Description

Cooler Master V1200 PLATINUM PSU



REAL POWER, REAL CONTROL

The MasterWatt Maker series is quite simply the highest caliber of power supply unit you can buy. It’s all aluminum construction, 80 PLUS Titanium efficiency rating, exclusive high capacity cable connector design, silent 135mm LDB fan, and seven year warranty make it a PSU that’s simply beyond comparison with most other products available to the public today. In this updated version, the MasterWatt Maker Plus now offers the full functionality of the MasterPlus+ software. You can now monitor and manage your PSU’s operations in real time, allowing a level of control that takes every aspect of building and maintaining your rig to new heights.

BRAINS AND BRAWN

The MasterWatt Maker Plus is the most powerful PSU Cooler Master has ever made. The all aluminum frame is built tough while maintaining a high level of aesthetic value. Internally, this unit is a power house capable of doing things that can’t even be imagined with many other models. But it’s more than just a strong PSU. It’s also a smart one. This is Cooler Master’s first digital power supply unit. It was made with the intention of giving users as much control as possible in the management of their PSU and their system in general. To do this, a digital processor was built right into the platform.

THE POWER IS YOURS

The MasterPlus+ software is Cooler Master’s newest innovation for system management. This software provides users the ability to monitor just about every aspect of the MasterWatt Maker’s operations in real time. Temperature, fanspeed, system load, and so much more. And you don’t just have the ability to see what’s going on. You can control it. Change operational settings for whatever your needs are whenever you want. The MasterPlus+ software puts the power directly into your hands. And with direct compatibility with overlay.live you can stream your PSU telemetry data in real time as well.

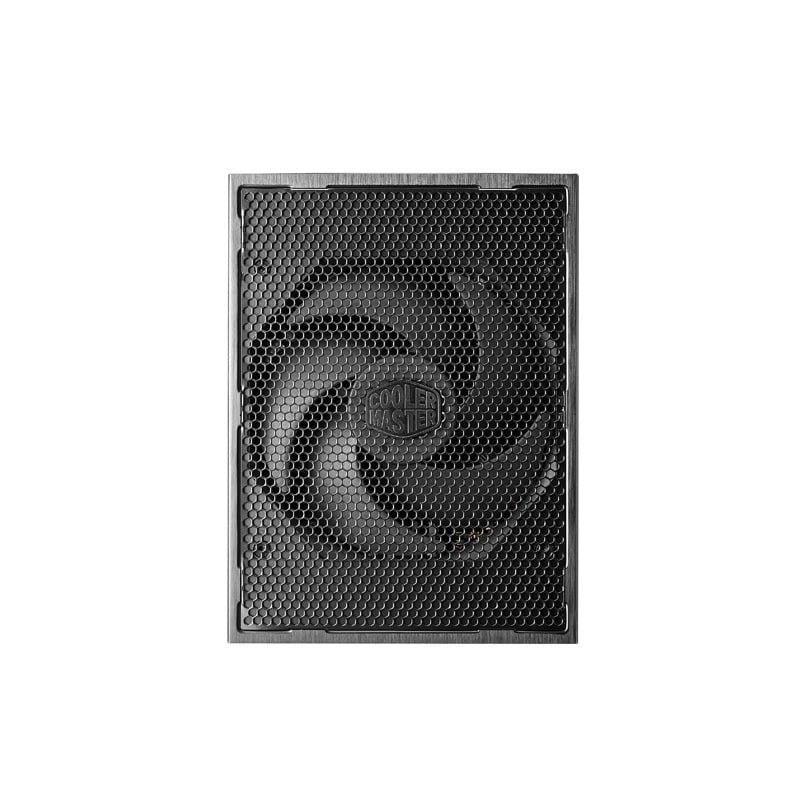

THE STRONG SILENT TYPE

The MasterWatt Maker series uses Cooler Master’s premium Silencio FP 135mm LDB fan to keep cool. This fan offers excellent cooling with minimal noise. And with the newly added MasterPlus+ software, you can tell the PSU exactly what speeds to run the fan at based on load and monitor the unit’s temperature in real time. But with the size, construction, materials, and extremely high efficiency of this power supply unit, you may never need to use your fan at all.

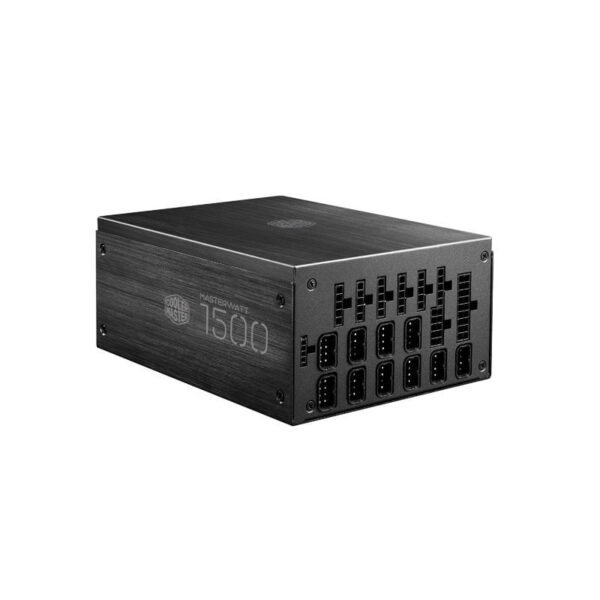

BUILD BETTER

With fully modular cabling you can build the absolute best version of your PC. The least clutter, the highest aesthetic value, the best airflow, and the best overall performance is only possible with a fully modular PSU. But the MasterWatt Maker series takes full-modular cables to the next level. The cables aren’t just fully modular in this series. They’re specially constructed unlike any other unit available on the market. These special connectors create surface contact efficient enough to carry 1.5x the current of normal connectors for better overall efficiency and output stability.

ULTIMATE POWER

An 80 PLUS Titanium power supply unit is quite literally the best efficiency rating money can buy on the market today. While efficiency is certainly not the only spec worth considering when choosing a PSU, it’s definitely an important one. Especially when running intensive operations that require large amounts of power for long periods of time. If you want to keep that electric bill down, the MasterWatt Maker’s Titanium grade efficiency is the best option for your next high wattage setup.

PLAY THE LONG GAME

The MasterWatt Maker series offers the highest of high-end power supply units. There are simply no better options if you want the best quality money can buy. And while you might not need this level of quality and performance for your system, it also gives you the promise of long term usability. This PSU wasn’t just built to perform. It was also built to last. You can trust that you’ll be using this power supply for many years to come and we’re willing to back up that claim by offering a 7-Year warranty with any model in the MasterWatt Maker series.



SPECIFICATION

MODULAR Full Modular
POWER 1500 Watts
ATX VERSION ATX 12V, fully modular
PFC Active PFC (>0.95 typical)
INPUT VOLTAGE 100-240V
INPUT CURRENT 15-7.5A
INPUT FREQUENCY 47-63Hz
DIMENSIONS (L X W X H) 200 x 150 x 86 mm
FAN SIZE 135mm Silencio FP Fan
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME 16ms
EFFICIENCY 90-94%
MTBF 100,000 Hours
PROTECTIONS OPP, OVP, OCP, SCP, OTP
REGULATORY TUV, CE, FCC, BSMI, EAC, RCM, CCC, KC
MB 20+4 PIN CONNECTORS 1
CPU 12V 4+4 PIN CONNECTORS 2
PCI-E 6+2 PIN CONNECTORS 12
SATA CONNECTORS 20
PERIPHERAL 4-PIN CONNECTORS 12
FDD CABLE 4-PIN CONNECTORS 1
SERIE MasterWatt Maker Series
PRODUCT NAME MasterWatt Maker 1500 Plus
WATTAGE Above 750W
80 PLUS Titanium





Additional information

Dimensions 20 × 15 × 8.6 cm
