MASTERWATT 650

9,383.00 (In. GST)

SEMI-FANLESS MODULAR 80 PLUS BRONZE CERTIFIED POWER SUPPLY
Semi-Fanless up till 15% load
Dual Forward and DC-to-DC circuit design
5 years warranty
More Conductive PCI-e Cables
80 PLUS Bronze Certified
Durable LDB bearing

Out of stock

Compare
SKU: NG00262 Categories: ,

Description

Cooler Master MASTERWATT 650 PSU

The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load,the MasterWatt fan remains idle,offering zero dBA. When demand for power increases,a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance,MasterWatt is equipped with 16 AWG power cables,which reduces resistance,thereby increasing efficiency.



80 PLUS BRONZE CERTIFIED

The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.



DURABLE LDB BEARING

Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.

A. Sealant on the The groove outside of the bearing helps to circulate the oil
B. Sealant on the bobbin and featuring the highest dustproof level IP6X
C. Recycle slot adds extra storage space for the oil
D. The shaft makes the oil flow by pumping it while spinning



SEMI-FANLESS UP TO 15% LOAD

MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.



DUAL FORWARD AND DC-TO-DC CIRCUIT DESIGN

The Dual Forward and DC-to-DC circuit design offers reliability and stability.This is especially significant in +3.3V and +5V outputs.

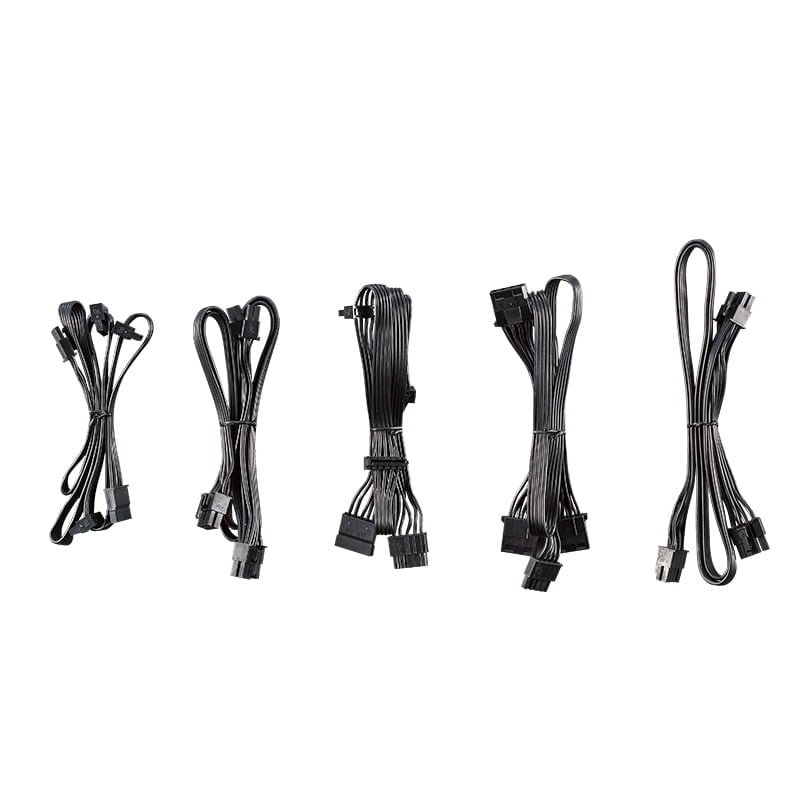

MORE CONDUCTIVE PCI-E CABLES

The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,przzoviding you a safer user environment.



SPECIFICATION

PRODUCT NAME MasterWatt 650
MODULAR Semi Modular
MODEL MPX-6501-AMAAB
ATX VERSION ATX 12V v2.4
PFC Active PFC
OPERATION VOLTAGE 100-240Vac
INPUT VOLTAGE 100-240Vac
INPUT CURRENT 10-5A
INPUT FREQUENCY 50-60Hz
DIMENSIONS (L X W X H) 140 x 150 x 86 mm
FAN SIZE 120mm
FAN BEARING LDB
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME 16ms at 80% Load
EFFICIENCY 85% @ Typical Load
ERP 2013 LOT 6 Yes
MTBF >100,000 Hours
OPERATING TEMPERATURE 0-40°C
PROTECTIONS OPP, OVP, UVP, OCP, SCP, OTP
REGULATORY CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
MB 20+4 PIN CONNECTORS 1
CPU 12V 4+4 PIN CONNECTORS 1
SATA CONNECTORS 9
PERIPHERAL 4-PIN CONNECTORS 3
PCI-E 6+2 PIN CONNECTORS 4
80 PLUS Bronze
WATTAGE 500 to 750W
SERIE MasterWatt Series

Additional information

Dimensions 14 × 15 × 8.6 cm
