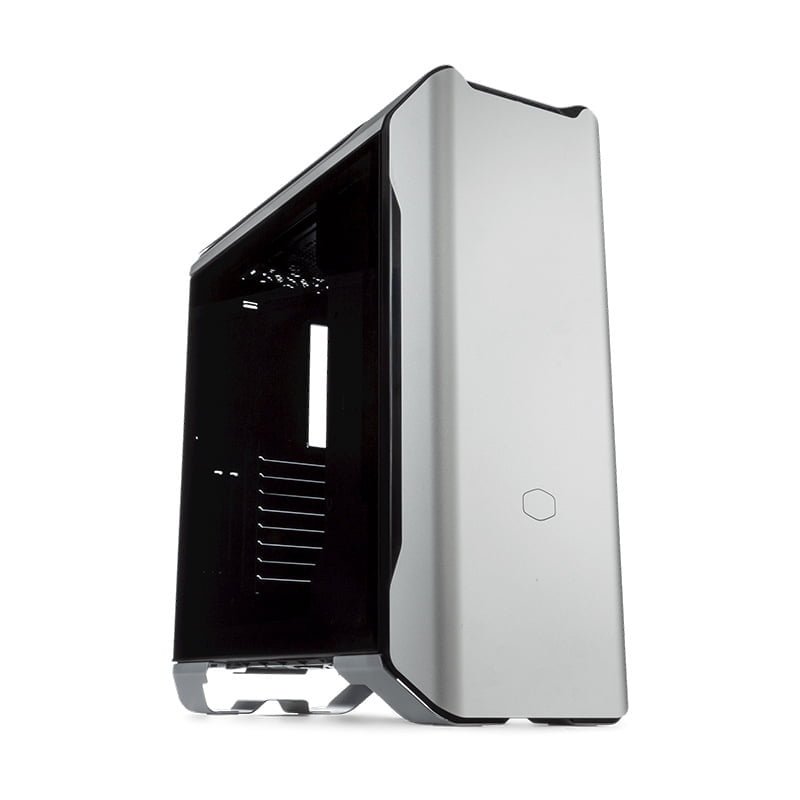

Cooler Master MASTERCASE SL600M Desktop PC Case
THE ENTHUSIAST’S CHOICE
Regarded as one of the highest thermal performing cases for graphics cards, the MasterCase SL600M accomplished unprecedented benchmarks. Engineering and technology within the SL600M transformed the belief that cooling must follow front-to-back airflow conventions. With dual 200mm fans mounted on the bottom, airflow travels upward—assisting the natural rise of heat—to keep performance intact while also keeping system configurations as quiet as possible. Elegantly designed and intuitively engineered, the MasterCase SL600M enables components to run proficiently for work, for play, and for everything in between.

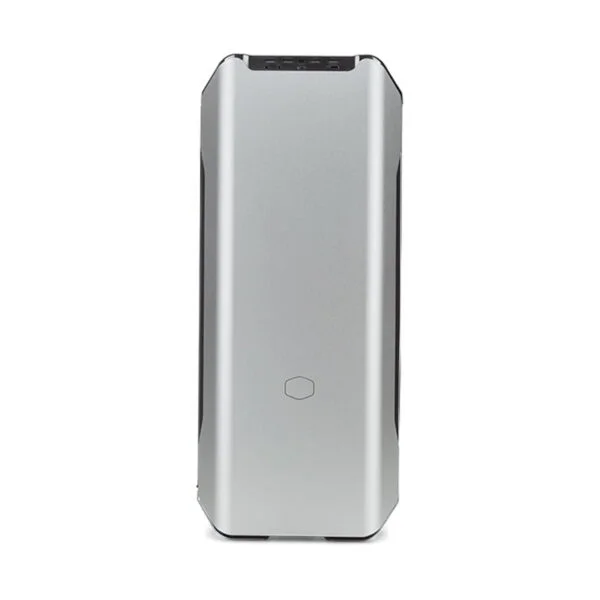

ANODIZED ALUMINUM PANELS

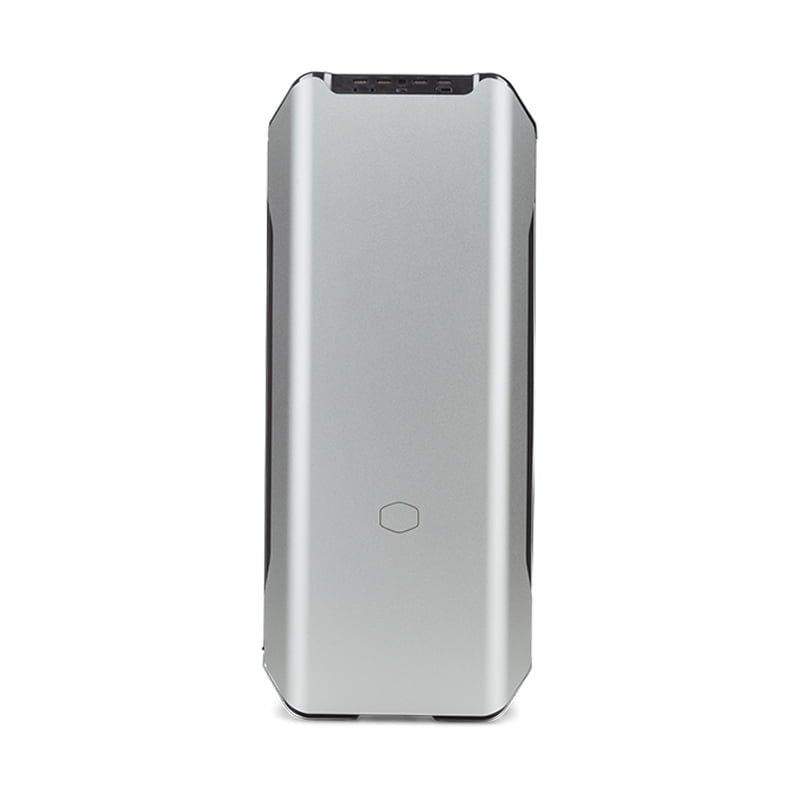

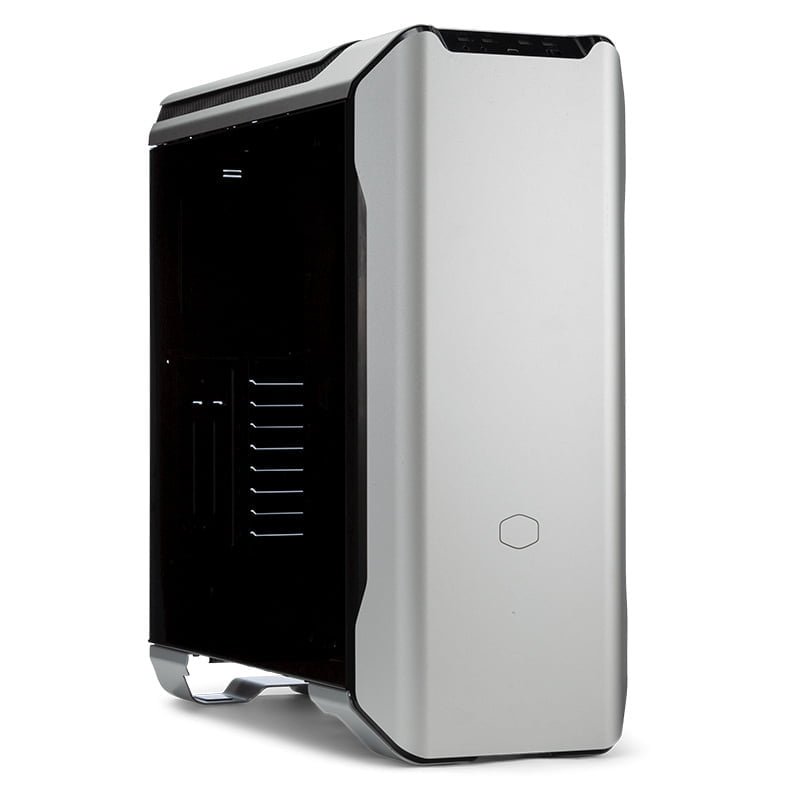

The top and front panels are anodized aluminum, sand-blasted for a smooth finish. Three separate pieces make up the exterior, completing its aesthetics for a contrasting display of bare aluminum and glass.

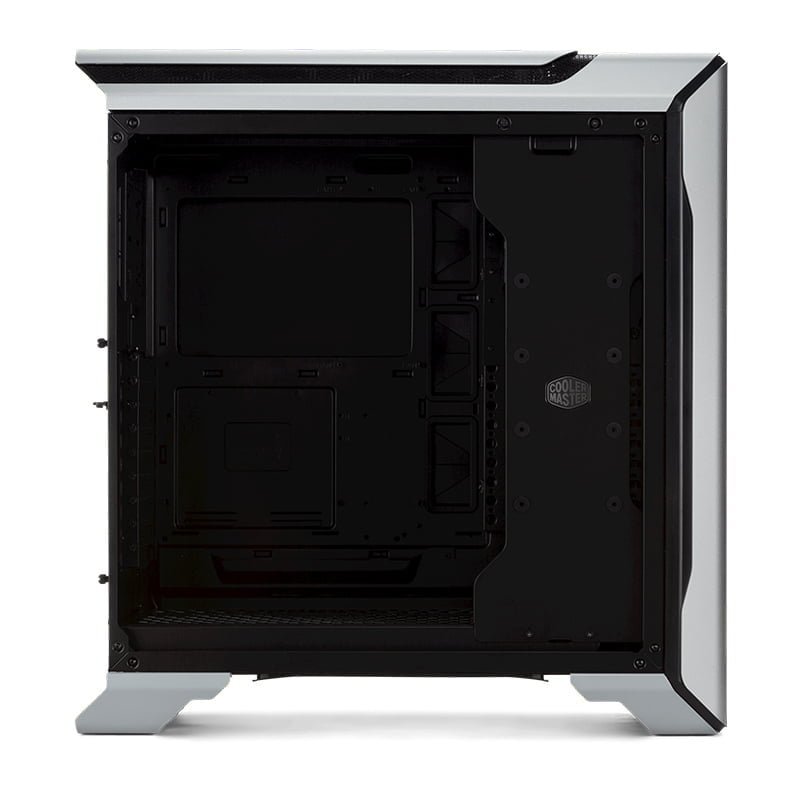

VERTICAL LAYOUT & CHIMNEY EFFECT
Fresh, cool air is taken from the bottom of the case, assisting the natural rise of hot air out of the top of the case for proficient thermal performance.
ACOUSTIC NOISE REDUCTION
Since the path of airflow is from bottom to top, the front and rear panels of the case act as a shield against noise. From the front, noise is shielded from escaping toward the user, while the rear panel prevents noise from bouncing off neighboring walls, minimizing acoustics.
OPERATIONAL NOISE REDUCTION
Noise is further reduced by large, low RPM fans in comparison to smaller, conventional fans. With efficient case cooling, there is an increased potential for system fans to operate quieter in turn. For maximized noise reduction, the dual 200mm fans can be set to their lowest RPM setting via the I/O Panel.

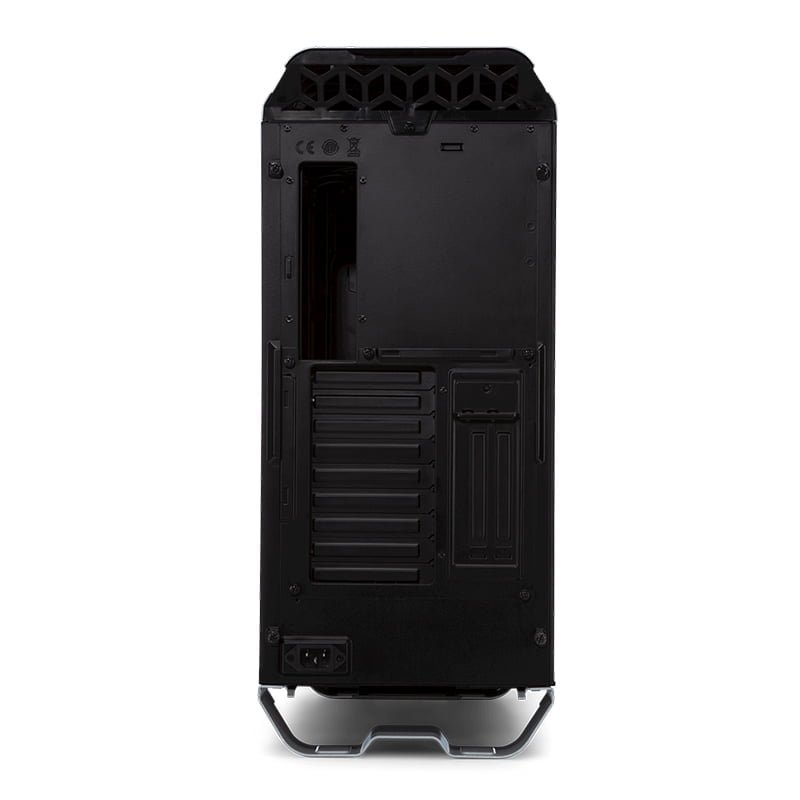

ROTATABLE PCI BRACKET
The entire window of the PCI Bracket is rotatable. This allows the unique option of mounting multiple graphics cards vertically and with more clearance away from the glass side panel, increasing the amount of air available to vertical graphics card(s).
*riser cable sold separately

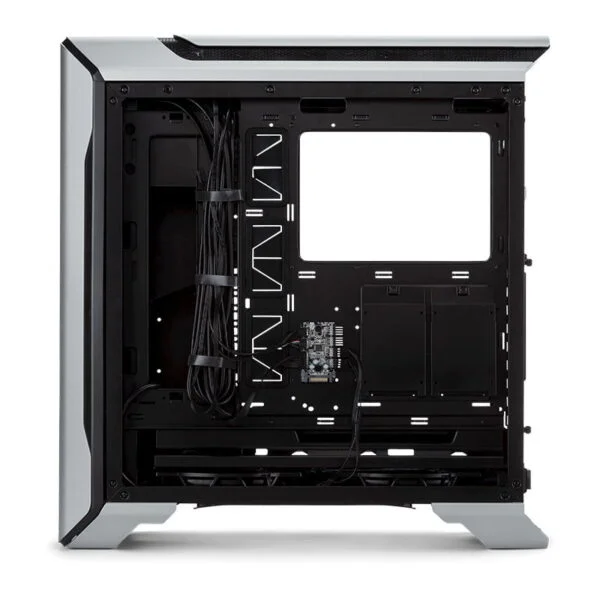

VERSATILE STORAGE BRACKETS
The SL600M features versatile brackets that can mount an SSD, HDD, or a pump/reservoir for liquid cooling. Brackets can be placed in multiple positions inside the case, including the bottom radiator bracket and behind the front panel.
PROXIMITY LIGHTING & I/O PANEL
A proximity sensor triggers the USB lighting for easy access in the dark. The panel will stay temporarily lit before turning off automatically. Furthermore, the I/O Panel features a USB 3.1 (Gen 2) Type-C port, four additional USB ports, a PWM fan speed slider, a headset jack (audio + mic), and a dedicated microphone jack.

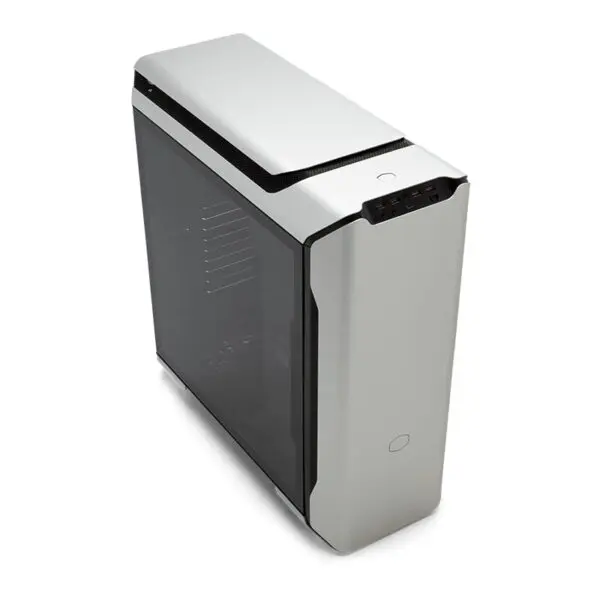

ADJUSTABLE TOP VENTILATION
The aluminum top panel can be adjusted to 3 different positions. The panel can either stay flush against the mesh, raised, or completely removed.
|AVAILABLE COLOR(S)||Black, Silver|
|MATERIALS||Steel body, Front Panel – Aluminum, Top Panel – Aluminum, Left Side Panel – Tempered Glass, Right Side Panel – Steel|
|DIMENSIONS (L X W X H)||544 x 242 x 574mm|
|MOTHERBOARD SUPPORT||Mini ITX, Micro ATX, ATX|
|5.25″ DRIVE BAYS||0|
|2.5″ / 3.5″ DRIVE BAYS (COMBO)||4|
|DRIVE BAYS – SSD||4|
|I/O PORT – POWER-LED COLOR||White|
|I/O PORT – HDD-LED COLOR||White|
|I/O PORT – USB-PORTS||1x USB 3.1 Type C, 2x USB 3.0 Type A, 2x USB 2.0 Type A|
|I/O PORT – AUDIO IN/OUT||1x 3.5mm Headset Jack (Audio+Mic), 1x 3.5mm Mic Jack|
|FAN CONTROL||4 step slide, 4 pin PWM x 4|
|PRE-INSTALLED FANS – BOTTOM||200mm PWM Fan x 2 (Speed: 400~800RPM / Connector: 4Pin)|
|FAN SUPPORT – TOP||3x 120mm, 2x 140/200mm|
|FAN SUPPORT – BOTTOM||3x 120mm, or 2x 140/200mm|
|RADIATOR SUPPORT – TOP||120mm, 140mm, 240mm, 280mm, 360mm|
|RADIATOR SUPPORT – BOTTOM||120mm, 140mm, 240mm, 360mm (maximum thickness clearance 72mm when the GFX is installed in the vertical position)|
|CLEARANCE – CPU COOLER||191mm|
|CLEARANCE – PSU||200mm/7.87″|
|CLEARANCE – GFX||318mm|
|POWER SUPPLY SUPPORT||Front Top Mount, ATX|
