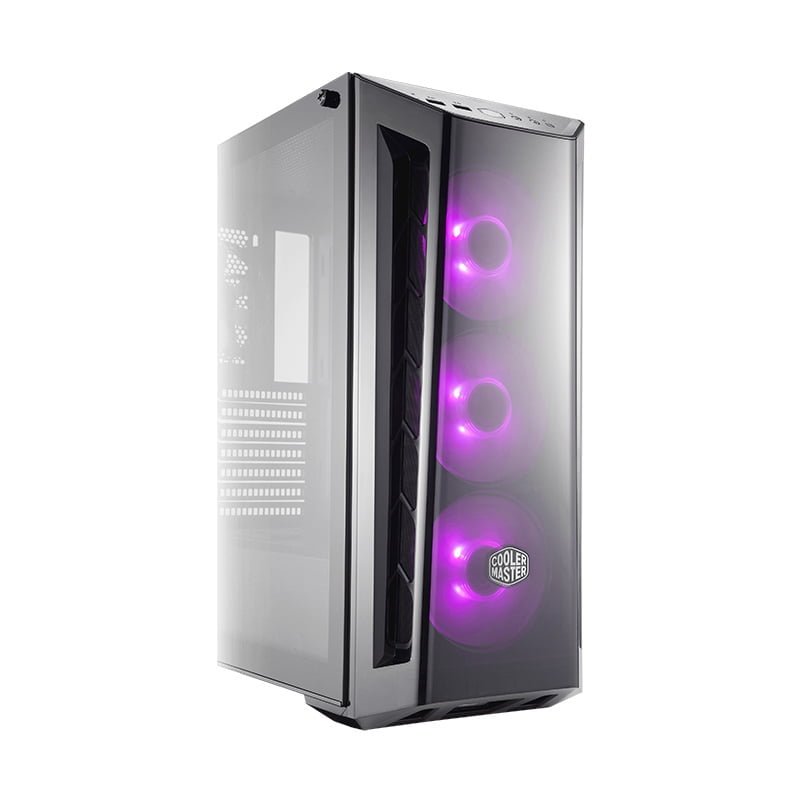

Cooler Master MASTERBOX MB520 RGB Desktop PC Case
DARKMIRROR FRONT PANEL
Shade light through a transparent, tinted front panel.
Large intakes on each side of the front panel let the system breathe easy.

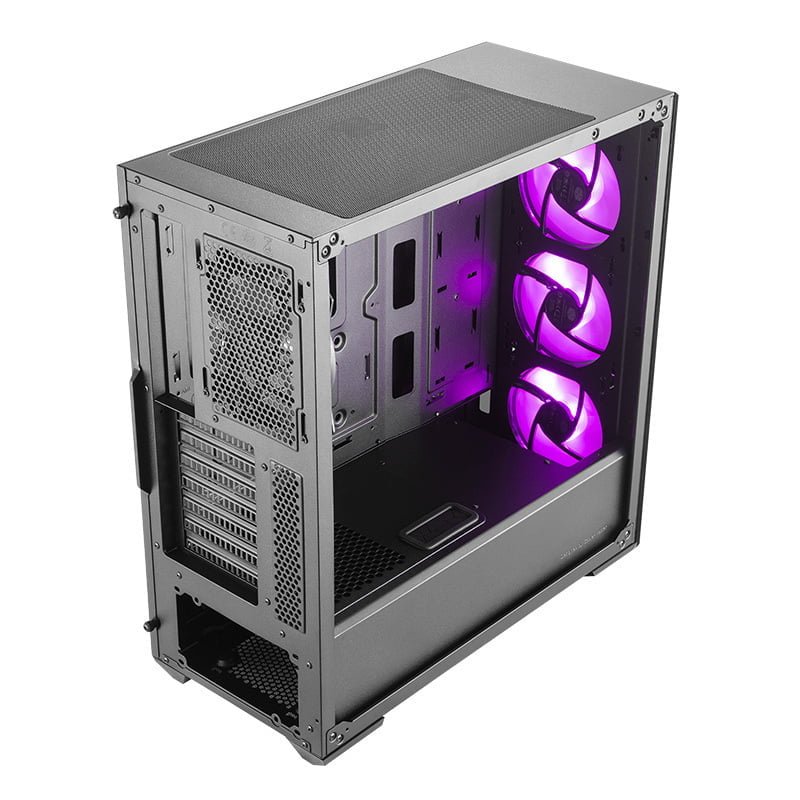

RGB LED FANS AND LIGHTING CONTROL
Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect.
One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.

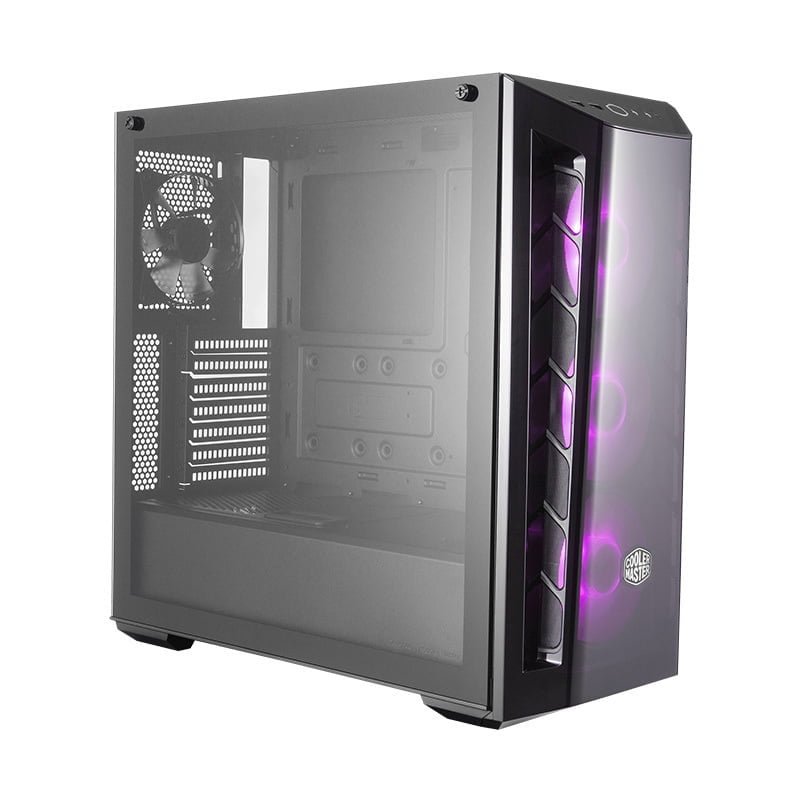

EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two “captive” screws are held in place with rubber so they are not misplaced.
GFX CABLE ROUTING
Conveniently route the graphics card cable through the PSU shroud grommet.
MAIN COMPONENTS CLEARANCE
The MB520 RGB case supports CPU Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm, and Power Supplies up to a length of 180mm.
|MATERIALS||Steel, Tempered Glass, Plastic|
|DIMENSIONS (L X W X H)||496 x 218 x 468mm|
|MOTHERBOARD SUPPORT||ATX, Micro ATX, Mini ITX|
|2.5″ / 3.5″ DRIVE BAYS (COMBO)||2|
|2.5″ DRIVE BAYS||4 (Max.6)|
|I/O PANEL||2x USB 3.0, Audio In & Out (supports HD audio)|
|RGB CONTROL||RGB controller included, 1 to 3 RGB splitter cable included|
|PRE-INSTALLED FANS – FRONT||3x 120mm RGB Fan|
|PRE-INSTALLED FANS – REAR||1x 120mm (Black)|
|FAN SUPPORT – FRONT||3x 120mm, 2x 140mm|
|FAN SUPPORT – TOP||2x 120mm, 2x 140mm|
|FAN SUPPORT – REAR||1x 120mm|
|RADIATOR SUPPORT – FRONT||120mm, 140mm, 240mm, 280mm, 360mm|
|RADIATOR SUPPORT – TOP||120mm, 240mm|
|RADIATOR SUPPORT – REAR||120mm|
|CLEARANCE – CPU COOLER||165mm/6.49″|
|CLEARANCE – GFX||410mm/16.1″|
|CLEARANCE – PSU||180mm/7.1″|
|CABLE ROUTING – BEHIND MOTHERBOARD TRAY||19-27mm / 0.74-1.06″|
|DUST FILTERS||Front, Bottom, Top|
|POWER SUPPLY SUPPORT||Bottom mount, ATX|
