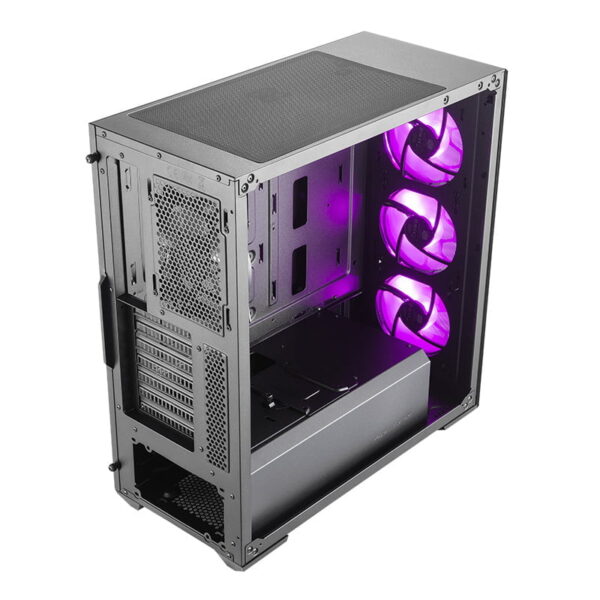

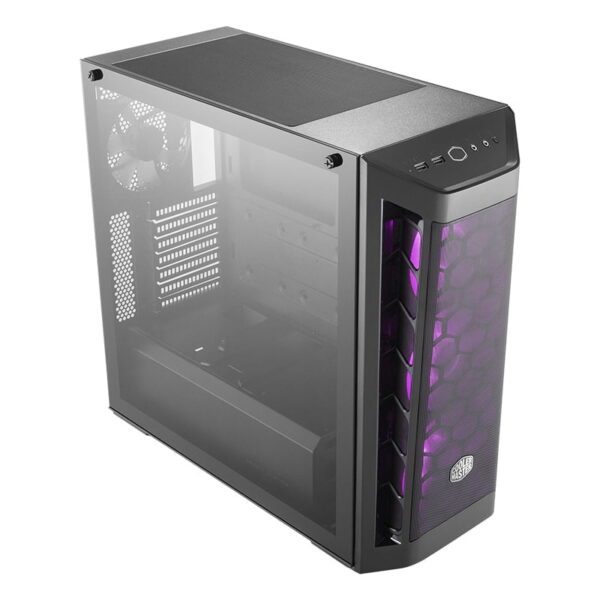

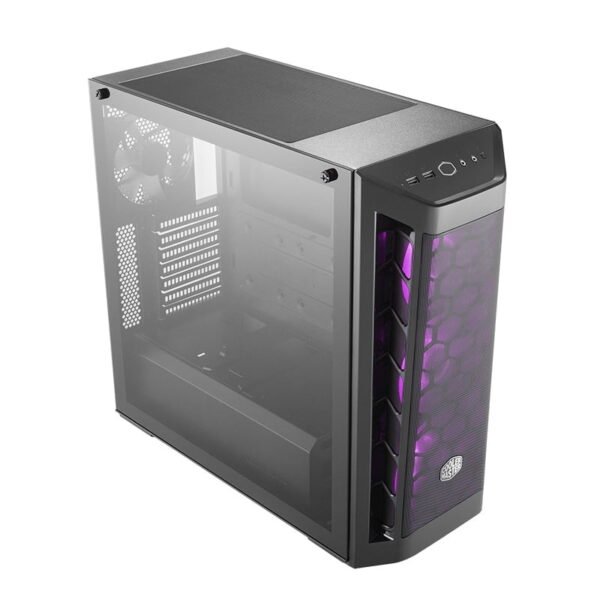

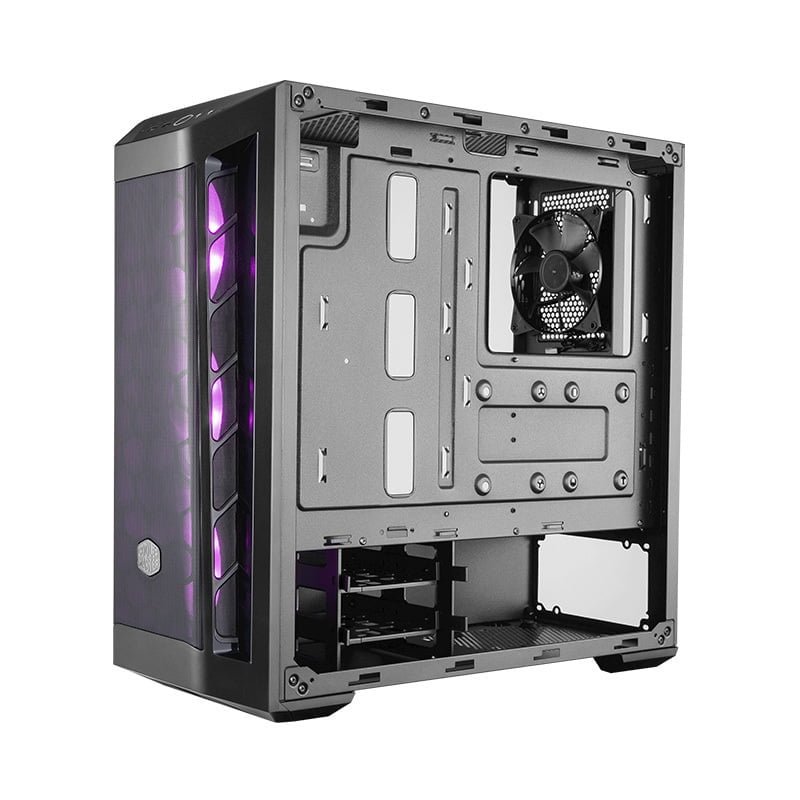

Cooler Master MASTERBOX MB511 RGB Desktop PC Case
MESH FRONT PANEL
The mesh front panel offers efficient airflow for demanding systems.
Large intakes on each side of the front panel pay tribute to high performance cars.
RGB LED FANS AND LIGHTING CONTROL
Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect.
One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.
EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case
FAN AND RADIATOR SUPPORT
EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two “captive” screws are held in place with rubber so they are not misplaced.
Mount an extra SSD on the PSU shroud for more storage.
|MATERIALS||Steel, Plastic, Tempered Glass|
|DIMENSIONS (L X W X H)||496 x 217 x 469 mm|
|MOTHERBOARD SUPPORT||ATX, Micro ATX, Mini ITX|
|2.5″ / 3.5″ DRIVE BAYS (COMBO)||2|
|2.5″ DRIVE BAYS||5 (Max.6)|
|I/O PANEL||2x USB 3.0, Audio In & Out (supports HD audio)|
|RGB CONTROL||RGB controller included, 1 to 3 RGB splitter cable included|
|PRE-INSTALLED FANS – FRONT||3x 120mm RGB Fan|
|PRE-INSTALLED FANS – REAR||1x 120mm|
|FAN SUPPORT – TOP||2x 120mm, 2x 140mm|
|FAN SUPPORT – FRONT||3x 120mm, 2x 140mm|
|FAN SUPPORT – REAR||1x 120mm|
|RADIATOR SUPPORT – FRONT||120mm, 140mm, 240mm, 280mm, 360mm|
|RADIATOR SUPPORT – TOP||120mm, 240mm|
|RADIATOR SUPPORT – REAR||120mm|
|CLEARANCE – CPU COOLER||165mm/6.49″|
|CLEARANCE – PSU||180mm/7.1″|
|CLEARANCE – GFX||410mm/16.1″|
|CABLE ROUTING – BEHIND MOTHERBOARD TRAY||19mm / 0.74″|
|DUST FILTERS||Front, Top, Bottom|
|POWER SUPPLY SUPPORT||Bottom mount, ATX|
