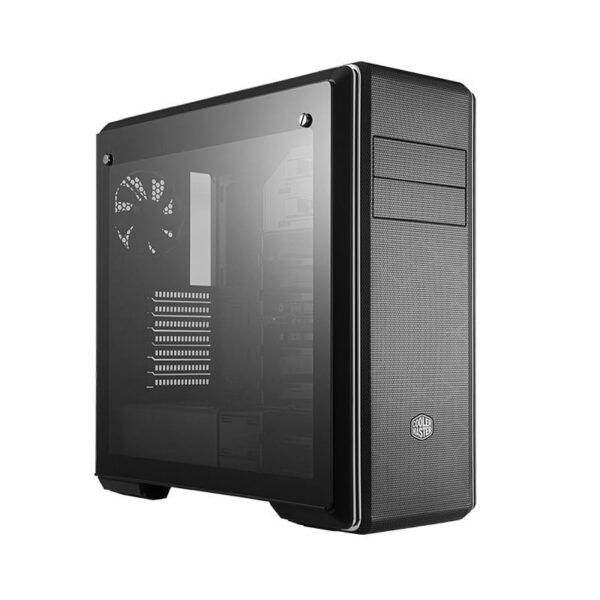

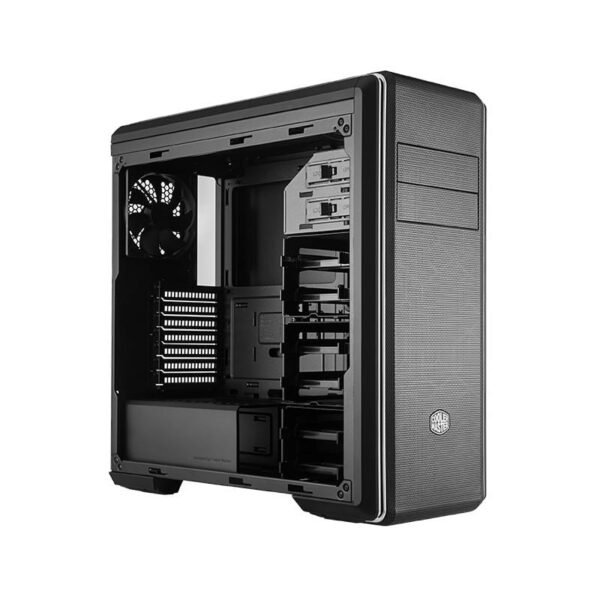

Cooler Master MASTERBOX CM694 Desktop PC Case

CURVED MESH

The top and front panel are entirely mesh, featuring the iconic CM690 curve and Cooler Master’s signature rhombus pattern. The fine mesh on the CM694 achieves optimal airflow while also filtering out dust with a single layer.

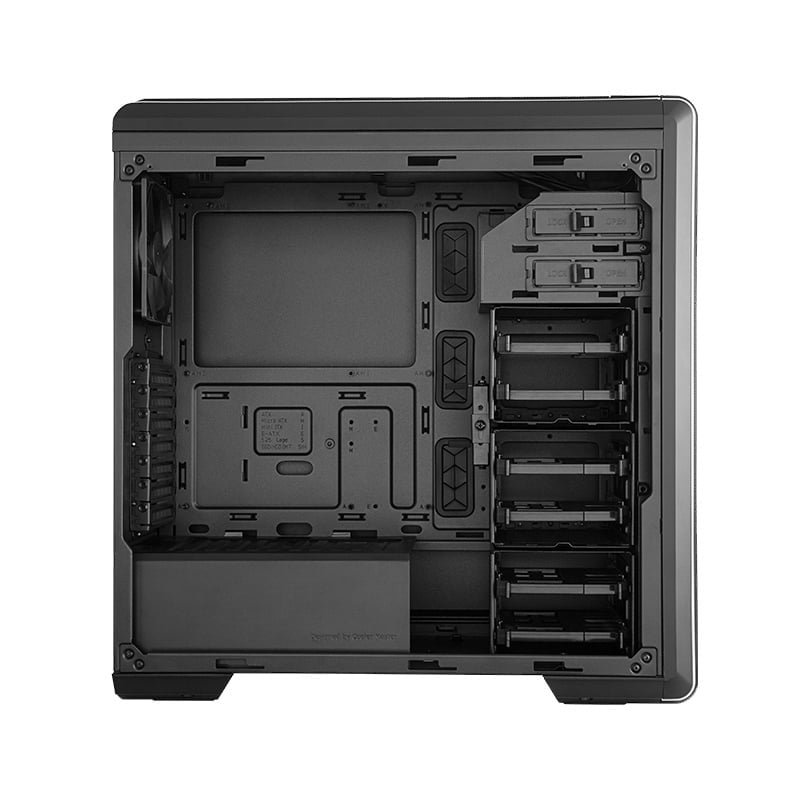

MODULAR DRIVE CAGES

3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.

GRAPHICS CARD STABILIZER

Graphics cards installed within the case are reinforced by an arm, ensuring the safe delivery and transportation of systems.

RICH CONNECTIVITY (I/O PANEL)

The dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.

COOLING SUPPORT

RADIATORS
Top: 120 / 140 / 240 / 280 / 360mm
(mount fans above bracket for maximum compatibility)
Front: 120* / 140* / 240* / 280** / 360mm*
*remove 2 out of 3 drive cage
**remove 2 out of 3 drive cages & ODD
Rear: 120mm

COOLING SUPPORT

FANS
Top: 120mm x 3 / 140mm x 2
Front: 120mm x 3 / 140mm x 2 (without ODD)
120mm x 2 / 140mm x 2 (with ODD)
Rear: 120mm x 1

MOTHERBOARD SUPPORT

Mini-ITX
Micro-ATX
ATX
E-ATX *

*E-ATX up to 12″ x 10.7″ impacts cable management options

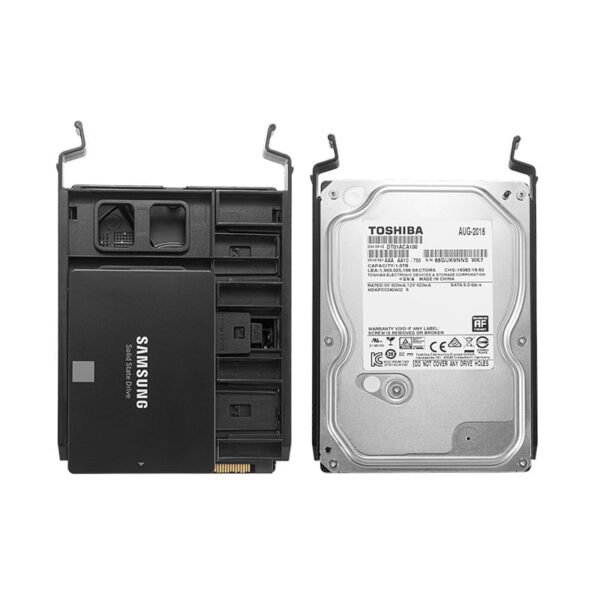

MASSIVE STORAGE SUPPORT

Simultaneous support for 6 x 3.5” HDDs
and 8 x 2.5” SSDs ensure substantial
storage capabilities.

Specification

MODEL NUMBER MCB-CM694-KN5N-S00 (Steel), MCB-CM694-KG5N-S00 (TG)
SERIES MasterBox Series
SIZE Mid Tower
AVAILABLE COLOR(S) Black
MATERIALS Steel, Plastic, Tempered Glass, Mesh
DIMENSIONS (L X W X H) Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions)
MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, E-ATX
EXPANSION SLOTS 7
5.25″ DRIVE BAYS 2
2.5″ / 3.5″ DRIVE BAYS (COMBO) 6 (3x drive cages)
2.5″ DRIVE BAYS 8 (2 + 6 combo)
I/O PANEL 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS – FRONT 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
PRE-INSTALLED FANS – REAR 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)
FAN SUPPORT – FRONT 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
FAN SUPPORT – TOP 3x 120mm, 2x 140mm
FAN SUPPORT – REAR 1x 120mm
RADIATOR SUPPORT – FRONT 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)
RADIATOR SUPPORT – TOP 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
RADIATOR SUPPORT – REAR 120mm
CLEARANCE – CPU COOLER 171mm
CLEARANCE – GFX 410mm/16.1″, 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
CLEARANCE – PSU 276mm, 160mm (drive cage rear position)
POWER SUPPLY SUPPORT Bottom mount, ATX PS2
DUST FILTERS Top, Front, Bottom
CABLE ROUTING 27-29mm
EAN CODE 4719512087305 (Steel), 4719512087299 (TG)
UPC CODE 884102059759 (Steel), 884102059742 (TG)

Additional information

Variant

MASTERBOX CM694 TG, MASTERBOX CM694
