18% off

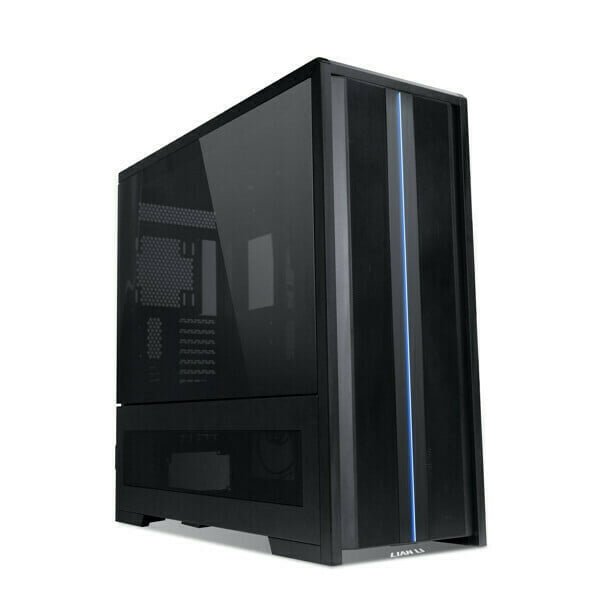

Lian Li V3000 Plus Full Tower Cabinet

48,900.00 (In. GST)

V3000 PLUS

  • Full tower chassis with 3 modes: Standard/ Rotate/ Dual-System
  • Capability to support an EEB motherboard and an ITX motherboard
  • Supports up to 4×480 + 1×360 radiators and a maximum of 17 fans
  • Two reservoir plates accommodate large D5/ DDC pump
  • Stores up to 16 storage drives at drive cages and trays
  • Modular removable brackets offer flexibility for builds
  • Cable management friendly with 7 Velcro straps

2 in stock (can be backordered)

Compare
SKU: NG0110006 Categories: ,

Description

Lian Li V3000 Plus Full tower chassis with 3 modes:

Lian Li V3000 Plus Full tower CabinetLian Li V3000 Plus Full tower Cabinet-1

SPECIFICATIONS

PRODUCT NAME LIAN LI V3000 PLUS
MODEL V3000PX
DIMENSIONS (D) 678.5mm x (W) 279mm x (H) 674mm
COLOR Black
MATERIALS Aluminum
Steel
4.0mm Dark Tinted Tempered Glass (right side)
4.0mm Tinted Tempered Glass (left side)
MOTHERBOARD SUPPORT Standard
EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Rotated
EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Dual System
System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
System 2 – Mini-ITX
FAN SUPPORT Standard
Front:4 x 120mm or 3 x 140mm
Top:4 x 120mm or 3 x 140mm or 2 x 200mm
Above PSU Chamber:3 x 120mm or 3 x 140mm
Bottom side:4 x 120mm or 3 x 140mm
Rear: 1 x 120mm or 1 x 140mm
Rotated
Front:4 x 120mm or 3 x 140mm
Top:4 x 120mm or 3 x 140mm or 2 x 200mm
Bottom side:4 x 120mm or 3 x 140mm
Rear: 3 x 120mm or 2 x 140mm
Dual System
Front:4 x 120mm or 3 x 140mm
Top:4 x 120mm or 3 x 140mm or 2 x 200mm
Above PSU Chamber:2 x 120mm or 2 x 140mm
Bottom side:4 x 120mm or 3 x 140mm (without System 2 GPU)
Rear: 1 x 120mm or 1 x 140mm
RADIATOR SUPPORT Standard
Front:480mm or 420mm
Top:480mm or 420mm
Above PSU Chamber:360mm or 420mm
Bottom side:480mm or 420mm
Rotated
Front:480mm or 420mm
Top:480mm or 420mm
Bottom side:480mm or 420mm
Rear: 360mm or 280mm
Dual System
Front:480mm or 420mm
Top:480mm
Above PSU Chamber:240mm or 280mm
Bottom side:480mm or 420mm (without System 2 GPU)
PSU SUPPORT System 1 – ATX (Max 220mm)
System 2 – SFX-L/SFX
GPU LENGTH CLEARANCE Standard
Max 589mm
Rotated
Max 358mm
Dual System
System 1 – Max 589mm
System 2 – Max 320mm (Width max 125mm)
CPU COOLER HEIGHT CLEARANCE System 1 – Max 198mm
System 2 – Max 80mm
PRODUCT DRIVE SUPPORTNAME Drive Cage:8 × 2.5” SSD or 8 × 3.5” HDD
Side:4 × 2.5” SSD
Behind MB tray: 4 × 2.5” SSD
EXPANSION SLOT System 1 – 8
System 2 – 3 (at PSU shroud, with optional riser cable)
I/O PORTS System 1
1 x Power Button
1 x Reset Button
1 x Light Color Button (C)
1 x Light Mode Button (M)
2 x USB 3.0
1 x USB Type C
1 x Audio
System 2
1 x Power Button
1 x Reset Button
2 x USB 3.0
1 x USB Type C
1 x Audio
DUST FILTER 1 x Bottom
WARRANTY 1 year
