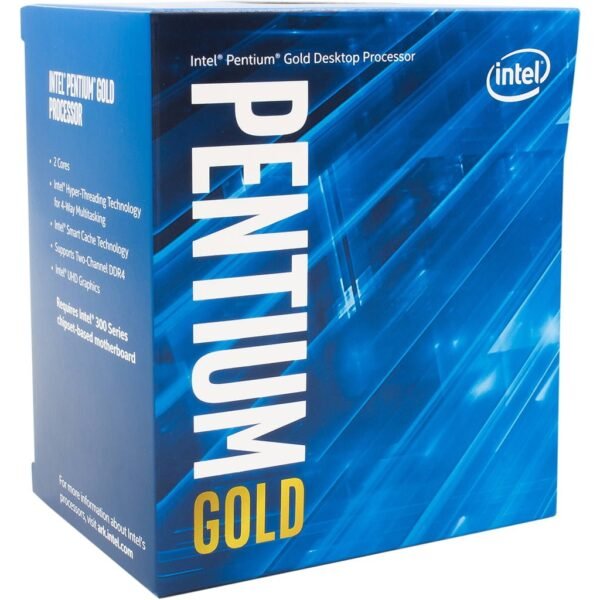

Intel Pentium Gold Series Desktop Processor

6,110.006,470.00 (In. GST)

Compare

Description

Intel Pentium Gold G7400 Processor

6M Cache, 3.70 GHz

Essentials
Product Collection Intel Pentium Gold Processor Series
Code Name Products formerly Alder Lake
Vertical Segment Desktop
Processor Number G7400
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 2
# of Performance-cores 2
# of Efficient-cores 0
Total Threads 4
Performance-core Base Frequency 3.70 GHz
Cache 6 MB Intel® Smart Cache
Total L2 Cache 2.5 MB
Processor Base Power 46 W
Supplemental Information
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 710
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.35 GHz
Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1
Execution Units 16
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0x4693
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+4 |  2×8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director No
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported ‡ Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ No
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes



SPECIFICATION

Product Collection Intel® Pentium® Gold Processor Series
Code Name Products formerly Comet Lake
Vertical Segment Desktop
Processor Number G6400
Lithography 14 nm
Use Conditions PC/Client/Tablet
CPU Specifications
# of Cores 2
# of Threads 4
Processor Base Frequency 4.00 GHz
Cache 4 MB Intel® Smart Cache
Bus Speed 8 GT/s
TDP 58 W
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
MaxMemoryBandwidth 41.6 GB/s
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 610
GraphicsFreq 350 MHz
Graphics Max Dynamic Frequency 1.05 GHz
GraphicsMaxMem 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI)‡ 4096×2160@30Hz
Max Resolution (DP)‡ 4096×2304@60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 4096×2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
ClearVideoTechnology Yes
# of Displays Supported ‡ 3
Device ID 0x9BA8
Expansion Options
Scalability 1S Only
PCI Express Revision 3
PCI Express Configurations ‡ Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Thermal Velocity Boost No
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ No
VProTechnology No
HyperThreading Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® Transactional Synchronization Extensions No
EM64 Yes
InstructionSet 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) No
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® OS Guard Yes
TXT No
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes

Additional information

Model

G7400, G6400
