38% off

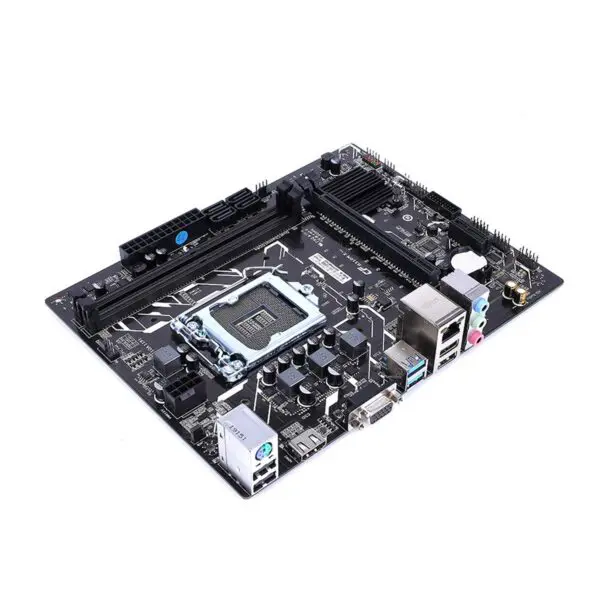

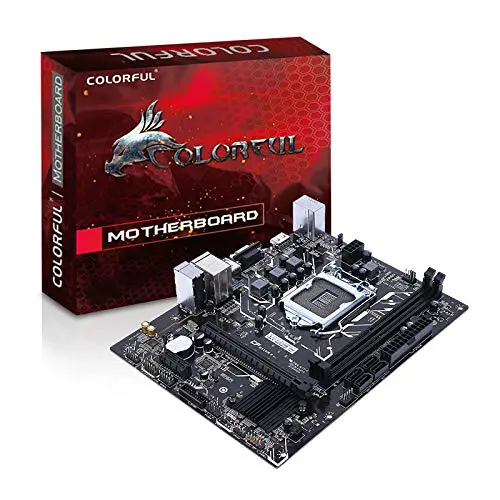

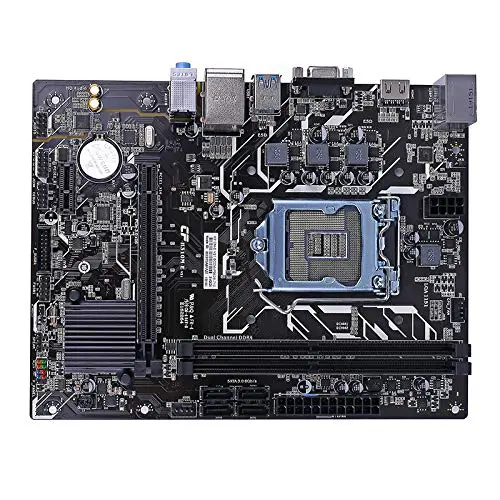

Colorful H310M-E V21 Motherboard

5,300.00 (In. GST)

◆Supports 8th and 9th Generation Intel Core Processors (Socket 1151)
◆Supports Dual Channel DDR4 2133/2400/2666MHZ memory
◆4*SATA3.0 ports
◆RTL8111F 1000M LAN
◆Realtek ALC662 6-ch audio chipset
◆VGA+HDMI ports
◆6*USB2.0 and 4*USB3.0 ports(include headers)
◆Audio isolated LED light
◆Support S3、S4、S5 wake-up
◆Support phone call startup、timing boot、network S5 wake-up

3 in stock

SKU: NG01014 Categories: ,


Colorful H310M-E V21 Motherboard with Dual DDR4 Memory Slots Support Intel LGA1151 Coffee Lake-S Series Processors


Colorful H310M-E V21 Motherboard

Colorful H310M-E V21 Motherboard

Colorful H310M-E V21 Motherboard

About this item

  • Support Intel LGA1151 coffee, lake-s series processors, providing excellent performance.
  • Equipped with 2 DIMM slots, support dual Channel DDR4 2133/2400/2666MHz memory.
  • Equipped with 4*sata3.0 ports, provide a 6Gbps transmission rate.
  • A Hi-fi 6-channel sound card can restore the essence of sound, bring an outstanding immersive gaming experience.
  • Adopt high performance RTL8111F 1000M LAN chip to provide fast transmission speed for online games and file transfer.



Motherboard Series Intel chipset, COLORFUL series
Chipset Intel H310
Processor support Intel LGA1151 Coffee Lake-S processors
Memory 2 DIMM slots, support dual-channel DDR4 2133/2400/2666MHz memory
Graphics Support 1*PCI Express3.0X16 slot
SATA Ports 4*SATA3.0 6Gb/s ports
Board I/O 1*PS2 port,1*VGA port,1*HDMI port,1*RJ45 lan,3*audio ports,6*USB2.0 and 4*USB3.0(including headers)
Expansion Slots 1*PCI Express 2.0×1 slot
Power Management support 65W processors
Hardware Monitor CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring
LAN RTL8111F,1000M LAN,Provides 10/100/1000Mb Ethernet
Audio ALC662 6-channel audio chipset
Configuration 170 x 221 mm mATX


Technical Details


Motherboard Series:    Intel series
Chipset: Intel H310
Processor: Support Intel LGA1151 Coffee Lake-S processors
Memory: 2 DIMM slots, support dual-channel DDR4 2133/2400/2666MHz memory
Graphics Support: 1*PCI Express3.0X16 slot
SATA Ports: 4*SATA3.0 6Gb/s ports
Board I/O: 1*PS2 port, 1*VGA port, 1*HDMI port, 1*RJ45 LAN,3*audio ports, 6*USB2.0 and 4*USB3.0(including headers)
Expansion Slots: 1*PCI Express 3.0×16 slot, 1*PCI Express x1 slot
Power Management: Support 65W processors
Hardware Monitor: CPU fan speed controlled, SYSTEM fan speed monitoring, CPU temperature monitoring, system temperature monitoring, and voltage monitoring
LAN: RTL8111F, 1000M LAN, provides 10/100/1000Mb Ethernet
Audio: ALC662 6-channel audio chipset
Configuration: 170*221mm mATX

Packing list:
1 * Motherboard
2 * SATA cables
1 * I/O baffle
1 * Drive CD
1 * User manual
