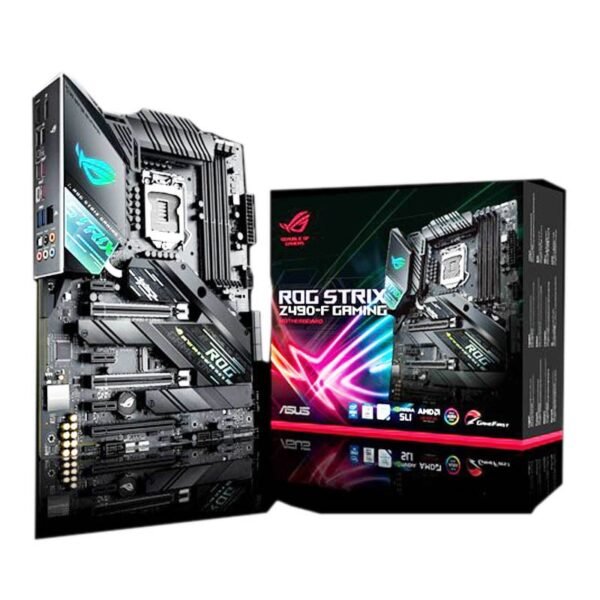

ASUS STRIX-Z490-F GAMING

35,190.00 (In. GST)

Intel® Z490 LGA 1200 ATX gaming motherboard featuring 14 Power Stages, AI Overclocking, AI Cooling, AI Networking, Intel® 2.5 Gb Ethernet, dual M.2 with heatsinks, USB 3.2 Gen 2, SATA and AURA Sync RGB lighting

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors.
  • Optimal Power Solution: 12+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.
  • Optimized Thermal Design: MOS Heatsink with U-shaped heatpipe, extended VRM heatsink, dual onboard M.2 heatsinks, including a fan bracket to mount an additional fan for superior cooling.
  • High-performance Networking: M.2 socket with E-key and Intel® 2.5 Gb Ethernet with ASUS LANGuard.
  • Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4, and featuring dual M.2 and USB 3.2 Gen 2 Type-A and Type-C® connectors.
  • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily.
  • DIY Friendly Design: Pre-mounted I/O shield, BIOS Flashback, Q-LED and FlexKey.
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.
  • Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action.

Out of stock

Compare
SKU: NG00433 Categories: ,

Description

ASUS STRIX-Z490-F GAMING








The ROG Strix Z490-F Gaming motherboard is designed to cope with the demands of 10th Generation Intel® Core™ processors, with boosted power delivery and an optimized cooling design providing more surface area for heat dissipation. ROG Strix Z490-F Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily. Performance aside, ROG Strix Z490-F Gaming catches the eye, sporting cyberpunk inspired aesthetics including a mirrored stainless steel finish.



ALL-ROUND PERFORMANCE

ROG Strix Z490-F Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls lets you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.



SPECIFICATION

  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® Z490
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 *
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports NVIDIA 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    Intel® Z490 Chipset
    1 x PCIe 3.0 x16 (max at x4 mode)
    3 x PCIe 3.0 x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I225-V 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless Data Network
    M.2 slot only (Key E) (Support CNVI interface)*
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    – Dual OP Amplifiers
    – Impedance sense for front and rear headphone outputs
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    – SupremeFX Shielding™ Technology
    – Gold-plated jacks
    – Optical S/PDIF in port(s) at back panel
    – Audio Shielding
    – Premium Japanese audio capacitors
    – Audio Cover
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    Rear USB Port ( Total 8 )
    4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x Type-C)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)
    Front USB Port ( Total 7 )
    1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)
  • ROG Exclusive Features
    ROG Exclusive Software
    – RAMCache III
    – CPU-Z
    – Sonic Radar III
    – Overwolf
    – Sonic Studio III + Sonic Studio Virtual Mixer
    ROG Aluminum heatsink cover
  • Special Features
    AURA :
    – Aura RGB Strip Headers
    – Addressable Gen 2 Header
    ASUS Exclusive Features :
    – Pre- mounted I/O shield
    ASUS EZ DIY :
    – ASUS USB BIOS FlashBack
    ASUS Q-Design :
    – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    – ASUS Q-Slot
    – ASUS Q-DIMM
    DIY Friendly Design
    – ProCool II
    – SafeSlot
  • Software Features
    ROG Exclusive Software
    – RAMCache III
    – ROG CPU-Z
    – GameFirst VI
    – Sonic Studio III + Sonic Studio Virtual Mixer
    – Sonic Radar III
    – DTS® Sound Unbound
    – Overwolf
    – Anti-virus software
    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    AI Suite 3
    -5-way Optimization with AI Overclocking.
    TPU
    EPU
    Digi+ VRM
    Fan Xpert 4
    Turbo app
    -EZ update
    WinRAR
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    FlexKey
  • Back I/O Ports
    1 x Intel® I225-V 2.5Gb Ethernet
    1 x DisplayPort
    1 x HDMI
    4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
    2 x USB 3.2 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    1 x USB BIOS FlashBack Button(s)
    5 x Gold-plated audio jacks
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x W_PUMP+ connector
    2 x Addressable RGB header
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
    1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2 with E key for Wi-Fi module
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x CPU_OV jumper
    1 x M.2 Fan Header
    1 x VRM_HS_FAN Header
  • Accessories
    User’s manual
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG Strix stickers
    1 x Cable ties pack(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x Thermistor cable(s)
    1 x ROG Thank you card
    1 x 2-in-1 Rubber pad
    1 x Wi-Fi moving antenna
    1 M.2 SSD screw package(s)
    1 M.2 Key E screw package(s)
    1 ROG key chain
  • BIOS
    192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
    ** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated SATA6G_56 will be disabled.
