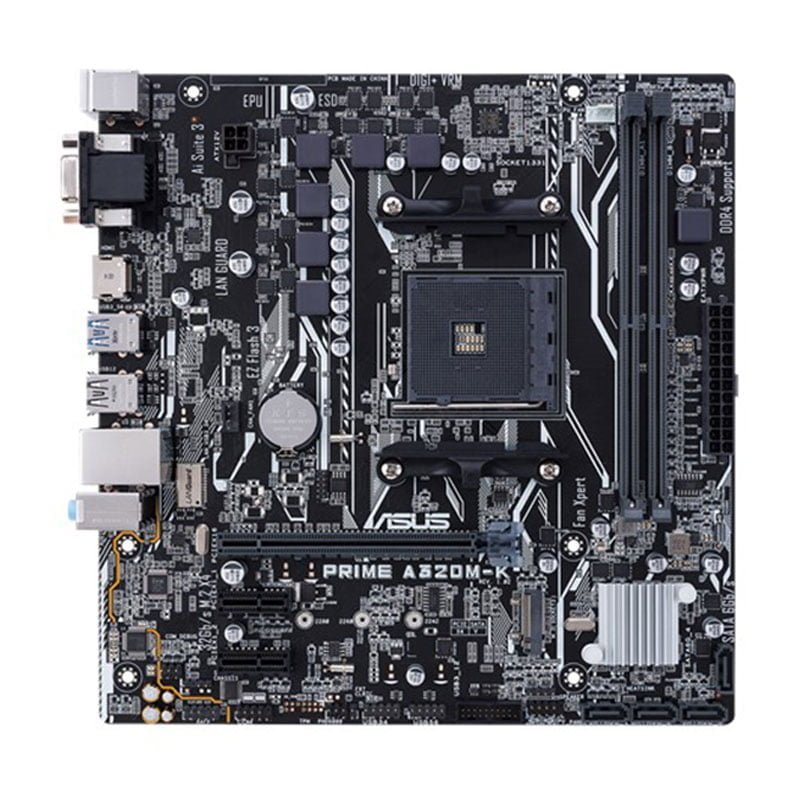

ASUS PRIME A320M-K/CSM

6,222.00 (In. GST)

AMD AM4 uATX motherboard with LED lighting, DDR4 3200MHz, 32Gb/s M.2, HDMI, SATA 6Gb/s, USB 3.0

  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • LED illumination: Lighting control for audio trace paths
  • Native M.2: Lightning-fast storage speeds
  • One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

Out of stock

Compare
SKU: NG00381 Categories: ,

Description

ASUS PRIME A320M-K/CSM

ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it’s time for Prime.

Built to Last

ASUS is the world’s foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.

SafeSlot Core

Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

LANGuard

Pumped-up throughput. 2.5x higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection

World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

Proven Compatibility

Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that’s the ASUS way.



Extensive List of Supported Devices

View supported devices and Qualified Vendor List for compatible memory
The superior compatibility of Prime A320 series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.

Great Compatibilitywith ASUS Products

ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime A320 series, so you can complete your custom motherboard build with confidence!

Top-to-bottom Reliability

ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

DDR4 Support

With DDR4, you’ll accelerate memory frequencies up to an incredible to 3200MHz! And ASUS works with almost every DDR4 memory vendor, so you’re assured the best compatibility.

Fan Xpert

Dedicated CPU and case fan controls

Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise – and with Prime A320 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

Gaming Audio

Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced!

Energy Efficient Design

EPU
With the Energy Processing Unit (EPU) you’ll enjoy system power savings. EPU automatically optimizes power consumption, and maximizes savings with Away mode.



Speed Up with Onboard M.2 Up to 32Gb/s

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Instant front-panel USB 3.0 Experience

We’ve put USB 3.0 right where you need it – four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!



Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you’re a PC novice or a seasoned overclocker, EZ and Advanced modes help you find your way, quickly and easily.



AI Suite 3
One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy-to-use functionality, with no need to switch back and forth between different utilities.



AMD CPU and Chipset Features

AM4 socket for 3rd/2nd/1st Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics / 7th Generation A-Series / Athlon X4 Processors
This motherboard supports AMD® Ryzen™ processors, 7th Generation A-series accelerated processing units (APUs) and Athlon™ CPUs. The high-performance Ryzen™ processor supports up to eight cores, and is based on the innovative Zen core architecture . The 7th Generation A-series APUs feature integrated AMD Radeon R-series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.0 and 16 PCI Express® 3.0/2.0 lanes for superb performance.

AMD A320 Chipset

The AMD A320 chipset delivers outstanding capabilities for the latest AMD® AM4-socket Ryzen™ processors, 7th Generation A-series APUs and Athlon™ CPUs. It provides two USB 3.0 ports, and four 6Gbps SATA ports for faster data retrieval.

SPECIFICATIONS

  • CPU
    AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD A320
  • Memory
    3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    AMD 7th Generation A-Series/Athlon X4 Processors
    2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
    Multi-VGA output support : HDMI/RGB ports
    – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 2048 MB (for iGPU exclusively)
  • Expansion Slots
    3rd/2nd/1st Gen AMD Ryzen™ Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD Athlon™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (x4 mode)
    AMD A320 chipset
    2 x PCIe 2.0 x1
  • Storage
    AMD A320 chipset :
    4 x SATA 6Gb/s port(s), gray,
    Support Raid 0, 1, 10
    3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon™ X4 Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
  • USB Ports
    3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
    4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
    AMD A320 chipset :
    2 x USB 3.0 port(s) (2 at mid-board)
    AMD A320 chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    – ASUS Overvoltage Protection: World-class circuit-protecting power design
    – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    – ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features :
    – AI Suite 3
    – Ai Charger
    ASUS Quiet Thermal Solution :
    – Stylish Fanless Design Heat-sink solution
    – ASUS Fan Xpert
    ASUS EZ DIY :
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    – Multi-language BIOS
    ASUS Q-Design :
    – ASUS Q-Slot
    – ASUS Q-DIMM
  • Operating System Support
    Windows® 10
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 (blue)
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x Speaker connector
  • Accessories
    User’s manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
  • Operating System
    Windows® 10 64-bit
    Windows® 7 64-bit *1
  • Form Factor
    mATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
  • Note
    *1 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
