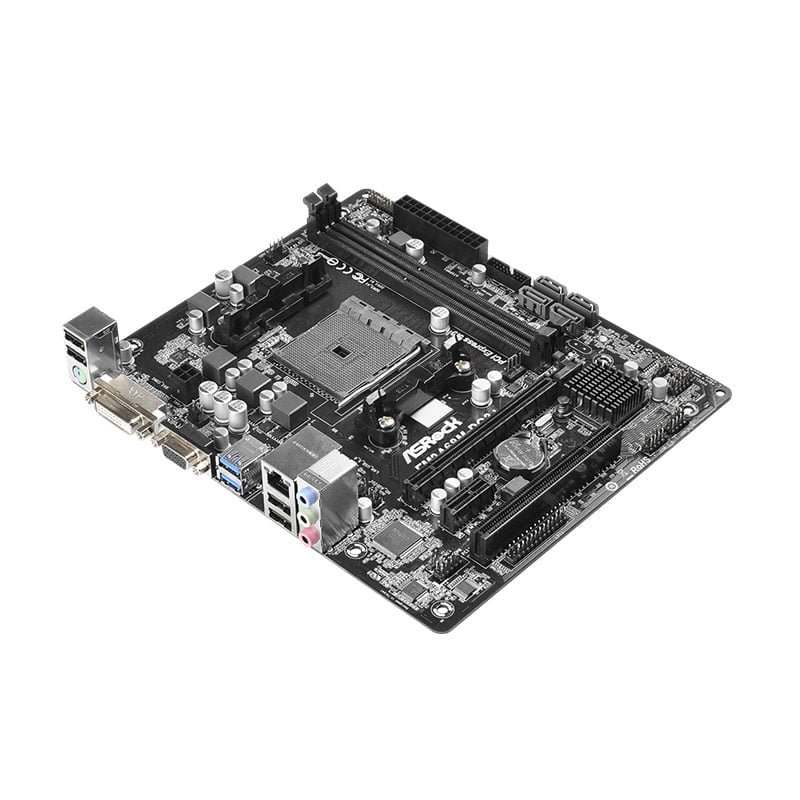

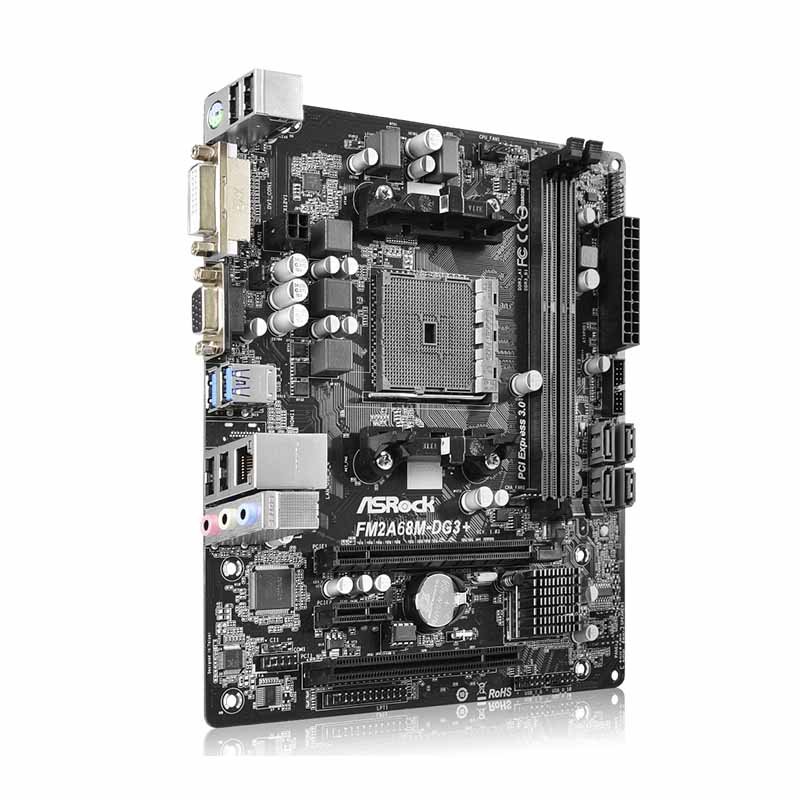

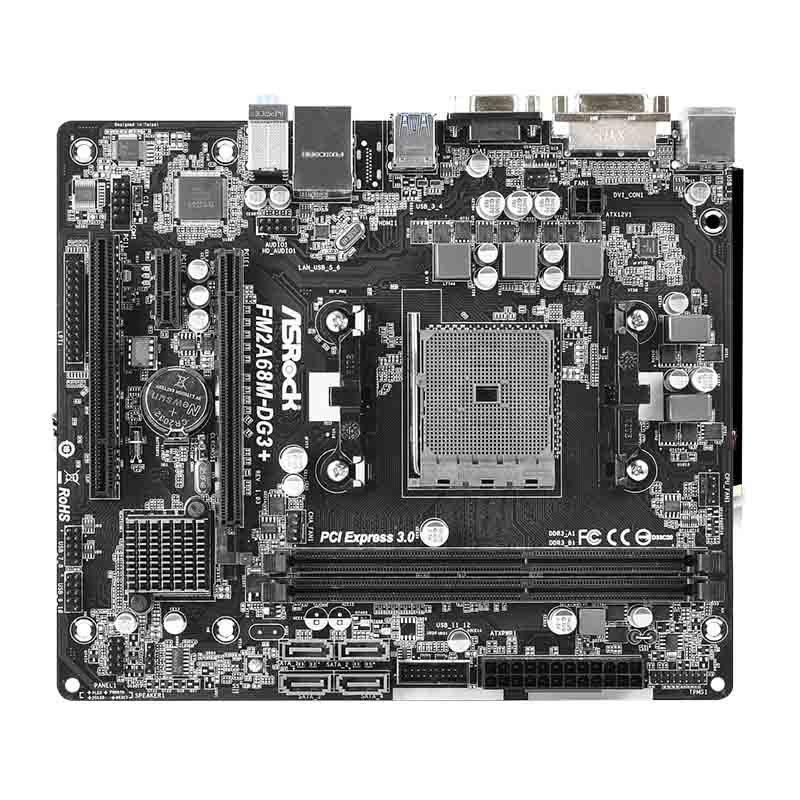

ASROCK FM2A68M-DG3+ MOTHERBOARD

(1 customer review)

3300

  • Support for Socket FM2+ 95W / FM2 100W processors
  • All Solid Capacitor Design
  • Supports Dual Channel DDR3 2400+(OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1, 1 PCI, Supports AMD Dual Graphics
  • Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
  • Graphics Output Options : D-Sub, DVI-D
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • 1 Print Port Header, 1 COM Port Header
  • 4 SATA3, 2 USB 3.1 Gen1, 10 USB 2.0 (6 Front, 4 Rear)
  • Supports ASRock Cloud, APP Shop, Full Spike Protection, X-Boost

Warranty 3 Years



3 in stock

Compare
Spread the love

Description

ASRock Micro ATX DDR3 1066 Motherboards FM2A68M-DG3+

SPECIFICATIONS

  • Unique Feature
    ASRock Full Spike Protection
    ASRock APP Shop
  • CPU
    – Supports Socket FM2+ 95W / FM2 100W processors
  • Chipset
    – AMD A68H (Bolton-D2H)
  • Memory
    – Dual Channel DDR3 Memory Technology
    – 2 x DDR3 DIMM Slots
    – Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
    – Max. capacity of system memory: 32GB*
    – Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
    – Supports AMD Memory Profile Technology (AMP) up to AMP 2400

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    – 64Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 1.1 Compliant wake up events
    – Supports jumperfree
    – SMBIOS 2.3.1 support
    – DRAM, CPU Voltage multi-adjustment
  • Graphics
    – Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
    – DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
    – Max. shared memory 2GB
    – Dual graphics output options: support DVI-D and D-Sub by independent display controllers
    – Supports Dual-link DVI-D with max. resolution up to 2560×1600 @ 60Hz
    – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
    – Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
    – Supports HDCP with DVI-D Port
    – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port
  • Audio
    – 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
    – Supports Surge Protection (ASRock Full Spike Protection)
  • LAN
    – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111GR
    – Supports Wake-On-WAN
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    – Supports LAN Cable Detection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    – 1 x PCI Express 3.0 x16 Slot ([email protected] x16 mode)
    – 1 x PCI Express 2.0 x1 Slot
    – 1 x PCI Slot
    – Supports AMD Dual Graphics

    *PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
  • Storage
    – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • Connector
    – 1 x Print Port Header
    – 1 x COM Port Header
    – 1 x Chassis Intrusion Header
    – 1 x TPM Header
    – 1 x CPU Fan Connector (4-pin)
    – 1 x Chassis Fan Connector (4-pin)
    – 1 x Power Fan Connector (3-pin)
    – 1 x 24 pin ATX Power Connector
    – 1 x 4 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x Flexible USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

    *This Flexible USB 2.0 header allows users to connect a Front USB 3.0 Panel, and support two USB ports with 2.0/1.1 data rate.
  • Rear Panel I/O
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x D-Sub Port
    – 1 x DVI-D Port
    – 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    – 2 x USB 3.1 Gen1 Ports (AMD A68H (Bolton-D2H)) (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock A-Tuning
    – ASRock Disk Health Report
    – ASRock USB Key
    – ASRock APP Charger
    – ASRock XFast RAM
    – ASRock Restart to UEFI
    – ASRock X-Boost
    UEFI
    – ASRock Interactive UEFI
    – ASRock Instant Boot
    – ASRock Instant Flash
    – ASRock Internet Flash
    – ASRock Crashless BIOS
    – ASRock OMG (Online Management Guard)
    – ASRock UEFI System Browser
    – ASRock UEFI Tech Service
    – ASRock Dehumidifier Function
    – ASRock Easy RAID Installer
    – ASRock Easy Driver Installer
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
  • Hardware Monitor
    – CPU temperature sensing
    – Chassis temperature sensing
    – CPU Fan Tachometer
    – Chassis Fan Tachometer
    – CPU, Chassis Quiet Fan
    – CPU, Chassis Fan multi-speed control
    – CASE OPEN detection
    – Voltage monitoring: +12V, +5V, +3.3V, Vcore
  • Form Factor
    – Micro ATX Form Factor
    – All Solid Capacitor design
    – High Density Glass Fabric PCB
  • OS

    – Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

    *Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)

Warranty 3 Years

Spread the love

Additional information

Weight 0.725 kg
