AsRock Fatal1ty H170 Performance

5,304.00 (In. GST)

  • ASRock Super Alloy
  • Gaming Armor – Memory / VGA Card / Cooling / Internet / Audio
  • Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
    *8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
  • Digi Power, 10 Power Phase design
  • Supports Dual Channel DDR4 2133
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output Options: DVI-D, HDMI
  • 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 3 & DTS Connect
  • 1 SATA Express, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 8 USB 3.1 Gen1 (5 Type-A + 1 Type-C, 2 Front)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop, F-Stream, Key Master, XSplit

Out of stock

Compare

Description

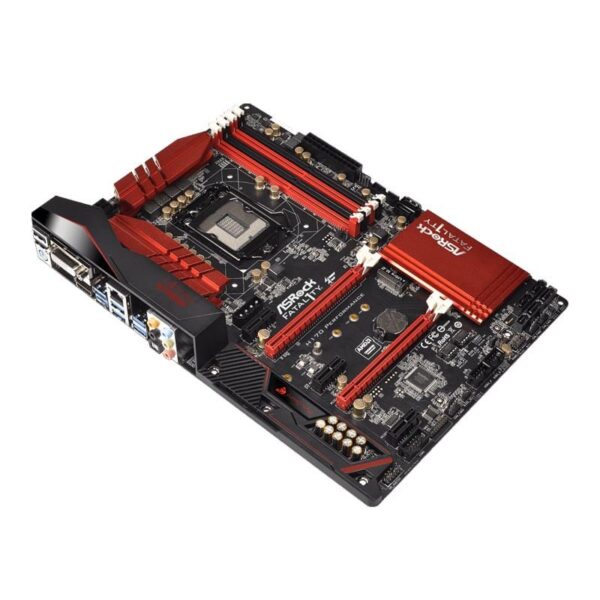

AsRock Fatal1ty H170 Performance Motherboard

Gaming Armor

Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)
– PCIe Power Connector
Internet
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
Audio
– Purity Sound™ 3

Unique Feature

ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop
  • CPU
    – Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
    – Digi Power design
    – 10 Power Phase design
    – Supports Intel® Turbo Boost 2.0 Technology
  • Chipset
    – Intel® H170
    – Supports Intel® Small Business Advantage 4.0
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 4 x DDR4 DIMM Slots
    – Supports DDR4 2133 non-ECC, un-buffered memory
    – Supports ECC UDIMM memory modules (operate in non-ECC mode)
    – Max. capacity of system memory: 64GB*
    – Supports Intel® Extreme Memory Profile (XMP) 2.0
    – 15μ Gold Contact in DIMM Slots

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    – 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
    – Supports Secure Backup UEFI Technology
    – ACPI 5.0 Compliant wake up events
    – SMBIOS 2.7 Support
    – CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment
  • Graphics
    – Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530
    – Pixel Shader 5.0, DirectX 12
    – Max. shared memory 1024MB*
    – Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
    – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
    – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    – Supports Accelerated Media Codecs: HEVC, VP8, VP9
    – Supports HDCP with DVI-D and HDMI Ports
    – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

    *The size of maximum shared memory may vary from different operating systems.

    **Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

  • Audio
    – 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
    – Premium Blu-ray Audio support
    – Supports Surge Protection (ASRock Full Spike Protection)
    – Supports Purity Sound™ 3
    – Nichicon Fine Gold Series Audio Caps
    – 115dB SNR DAC with differential amplifier
    – TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
    – Pure Power-In
    – Direct Drive Technology
    – PCB isolate shielding
    – Supports DTS Connect
  • LAN
    – Gigabit LAN 10/100/1000 Mb/s
    – Giga PHY Intel® I219V
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    – 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
    – 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    – Supports AMD Quad CrossFireX™ and CrossFireX™
    – 15μ Gold Contact in VGA PCIe Slot (PCIE2)

    *Supports NVMe SSD as boot disks
  • Storage
    – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
    – 1 x SATA Express 10 Gb/s Connector**
    – 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled.
    Support to be announced**Supports ASRock U.2 Kit
    Supports NVMe SSD as boot disks
  • Connector
    – 1 x COM Port Header
    – 1 x TPM Header
    – 1 x Power LED and Speaker Header
    – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
    – 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x PCIe Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

    *CPU_FAN1 and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
    The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

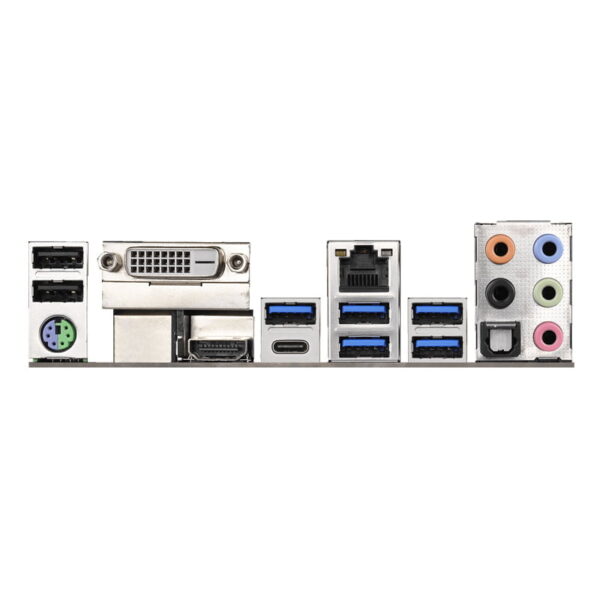

  • Rear Panel I/O
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x DVI-D Port
    – 1 x HDMI Port
    – 1 x Optical SPDIF Out Port
    – 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
    – 5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI

Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, XSplit
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 1 x Screw for M.2 Socket
  • Hardware Monitor
    – CPU, Chassis temperature sensing
    – CPU, Chassis Fan Tachometer
    – CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    – CPU, Chassis Fan multi-speed control
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA
  • Form Factor
    – ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
  • OS

    – Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

    *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.

    *For the updated Windows® 10 driver, please visit ASRock’s website for details.

  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
